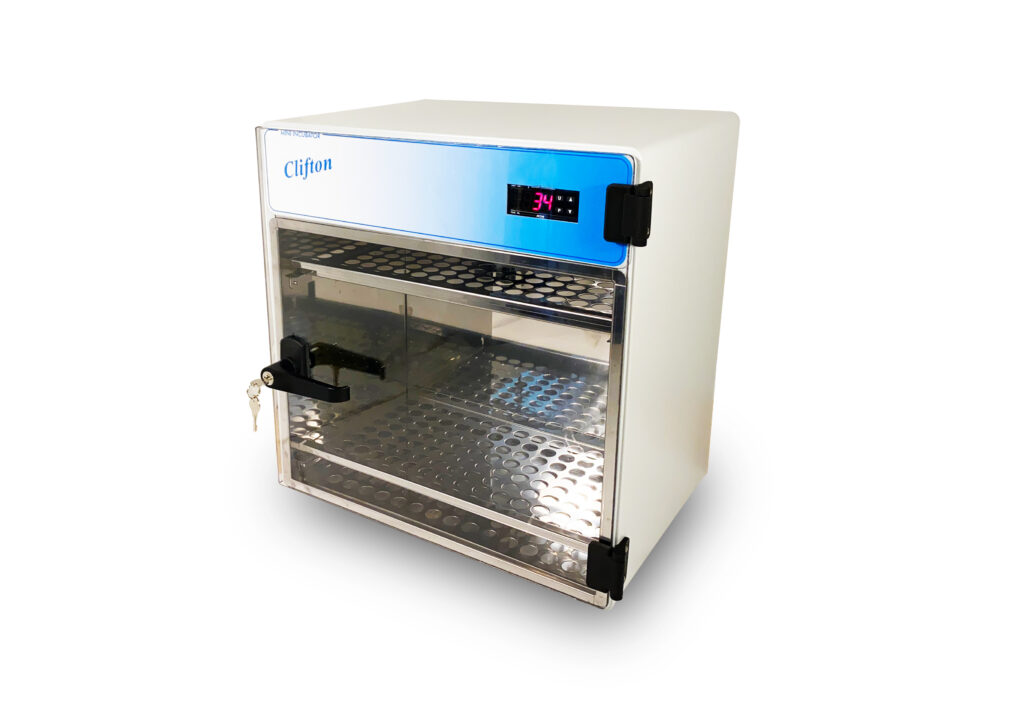

NE1M-25 Mini Incubator
NE1M-25 Mini Incubator
Temperature Range : Ambient +5°C - 60°C
laboratory settings.
The 25 litre chamber is manufactured from high quality corrosion resistant stainless steel within a steel body, with antibacterial paint finish. The PID temperature controller is secured behind a lockable polycarbonate clear door, to prevent unauthorised adjustment and allows full view of the chamber. Supplied with 2 stainless steel removable perforated shelves, the chamber is designed to take multiple petri dishes and 1 litre bottles.
The heaters are concealed behind the inner chamber walls ensuring accurate and stable gravity convection. The units are stackable ensuring the best use of bench top space.
3 Year Warranty
The NE1M comes with a 3 year warranty as standard, we also offer free advice and support for our Incubator.
MADE IN GREAT BRITAIN
The NE1M Series is made here in Great Britain with the highest quality of materials.
Specifications
| Product Code | NE1M-25 |
| Chamber Capacity | 25 Litres |
| Temperature Range | Ambient + 5°C - 60°C |
| Temperature Control | PID Digital, LED display showing actual or set temperature, resolution 1°C |
| Temperature Sensor | TC K probe with control diagnostics at power up |
| Temperature Fluctuation 37°C | ±0.2°C |
| Temperature Variation 37°C | ±0.5°C |
| Temperature Heat Up 37°C | 10 Minutes |
| Temperature Door Open Recovery 37°C | 5 Minutes |
| Chamber Convection | Gravity Convection |
| Temperature Alarm | Over temperature alarm automatically set 5°C above set temperature |
| Door | Single clear polycarbonate door, lockable |
| Shelves Fitted & Max. | 2 Perforated / 2 Max. |
| Shelving Locations | 2 Fixed positions |
| Shelf Max. Load | 10kg |
| Heater Power | 260W |
| Voltage | 230V 50/60Hz |
| Dimensions | |
| External (mm) | 451w x 377d x 467h |
| Internal (mm) | 400w x 250d x 320h |
| Feet/Castors | Fixed rubber feet |
Features and Benefits
The heaters are concealed behind the inner chamber walls ensuring accurate and stable gravity convection.
3 Year Warranty.
Before leaving our factory every oven is identified with a unique serial number and undergoes a factory calibration adjusting control to known traceable value. Electrically tested for safety at final inspection and a test certificate enclosed in rear of the instruction book.
The Clifton mini incubator feature intuitive easy to use PID controller.
The incubator chamber is constructed from high quality stainless steel with high efficiency thermal insulation, contained within an outer steel housing with anti-bacterial paint finish.

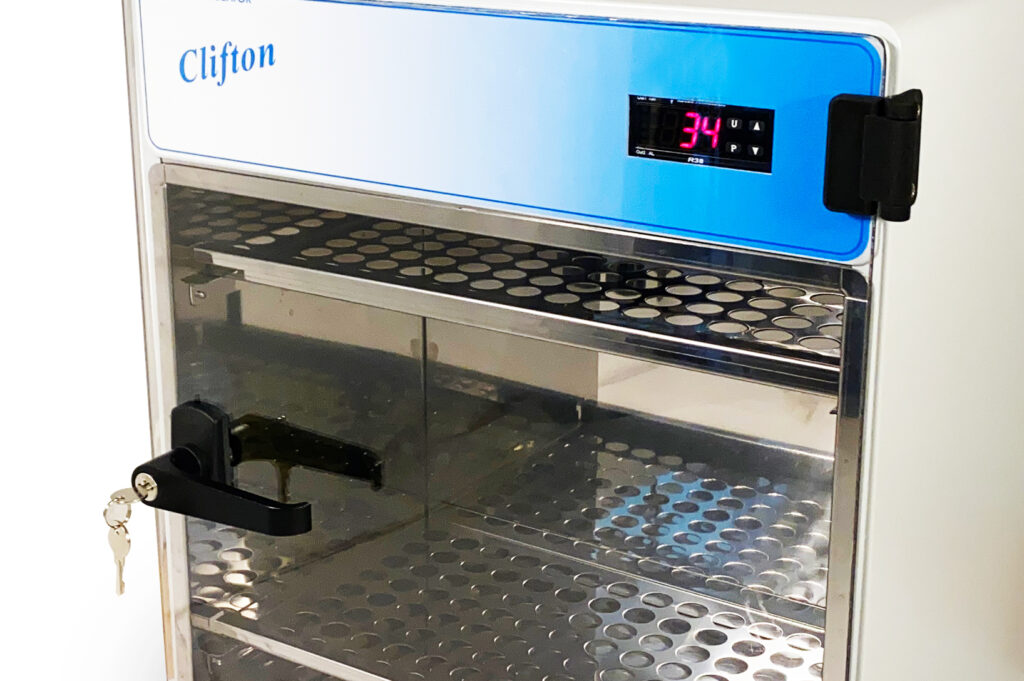

Door Features
Lockable polycarbonate clear door, to prevent unauthorised adjustment and allows full view of the chamber.
Safety Features
- Over temperature alarm is automatically set 5°C above set point.
- Fitted with Class 1 over temperature thermostat for overall unit protection.
Energy Consumption
0.05kWh at 37°C
0.15kWh at 60°C
The lower the figure, the less energy used. Information supplied for size and range comparison, guidance only and consumption measured at set point. Please remember that the energy consumption may vary due to factors such as location, ventilation, ambient temperatures and loading.
Controls
PID Digital, LED display showing actual or set temperature, resolution 1°C.
Notes
Before ordering please check the room or building access where this unit will be installed and electrical power requirements. Temperature fluctuation measurements are based on temperature readings on shelf in centre of the chamber. Allow a 100mm air gap away from wall at rear. Ensure there is a minimum 300mm air gap from top of the unit to ceiling. Do not place in direct sunlight or near a heat or cold source.
Downloads
Detailed document containing the specifications for the NE1M range.
