Ultrasonic Bath

Temperature Range : 30°C - 80°C
Image Hotspots with Tooltip (Hover)

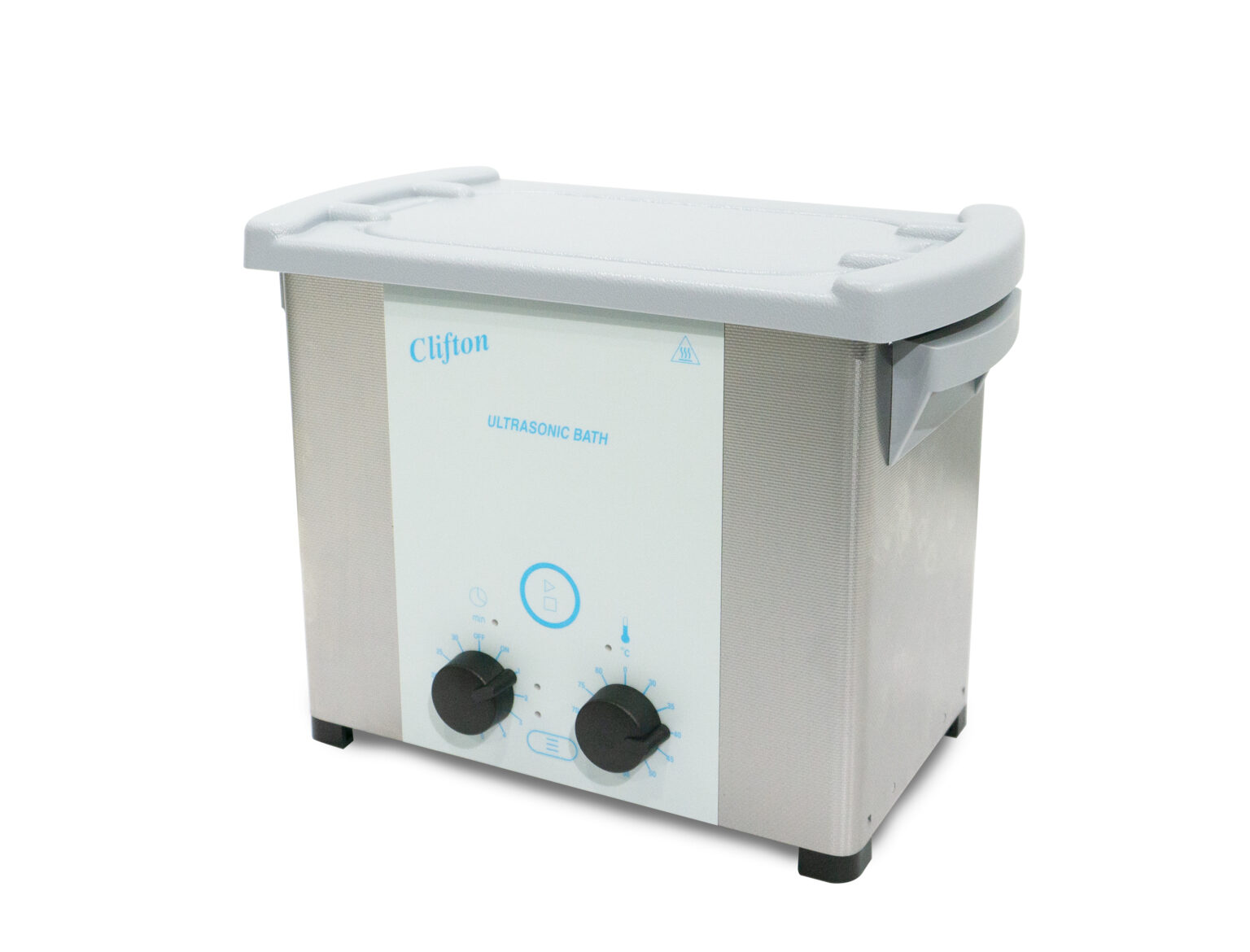

Interactive Map
Temperature Control
Analogue dial pointer.
30°C - 80°C in 5°C increments.
Timer
Time setting OFF, 1, 2, 3, 4, 5, 10, 15, 20, 25,
30 minutes or continuous up to 6 hours.
Drain Outlet.
Lid and Basket
All SW range of Ultrasonics come complete with
lid and basket.
Quality Build
Clifton ultrasonics baths are constructed from
high quality stainless steel for durability, with side lifting handles
on models 3 litres upwards for easy transportation.

These industrial strength ultrasonic baths are designed for demanding applications and suitable for continuous operation. The baths are also ideal for cleaning delicate or fragile components which may otherwise be damaged by mechanical cleaning.

The baths are available from 1 to 30 litres capacity and feature a eco and dynamic sonic mode. Eco offers quieter gentler ultrasonic activity whilst dynamic running provides vigorous cleaning.

The touch pad, wipe clean, control panel with rotary dials for time and temperature, can be set between 30°C and 80°C in 5°C increments. The timer can be selected to operate between 1-30 minutes or continuously up to 6 hours.

Clifton ultrasonics baths are constructed from high quality stainless steel for durability, with side lifting handles on models 3 litres upwards for easy transportation.

See the range of accessories compatible with the SW Range range.



2 Year Warranty

2 YEAR WARRANTY

The SW Range Series comes with a 2 year warranty as standard, we also offer free advice and support.

Please see below our full range of sizes for the SW Range range.

Specifications




SW1H product image
SW3H product image
SW6H product image
SW12H product image
SW30H product image
Product Code SW1H SW3H SW6H SW12H SW30H
Chamber Capacity 1 Litres 3 Litres 6 Litres 12 Litres 30 Litres
Temperature Range 30°C - 80°C in 5°C increments
Temperature Control Analogue dial pointer
Timer Time setting OFF, 1, 2, 3, 4, 5, 10, 15, 20, 25, 30 minutes or continuous up to 6 hours
Voltage 120V or 230V models available 50-60Hz
Ultrasonic Effective Power 30W 80W 150W 200W 300W
Ultrasonic Peak Power/Frequency 240W / 37kHz 320W / 37kHz 600W / 37kHz 800W / 37kHz 1200W / 37kHz
Heater Power (220-240V) 60W 200W 400W 800W 1200W
Drain Tap Fitted ❌ ✅
Complete with Lid and Basket ✅
Dimensions
Nominal Tank Capacity 1 Litre 3 Litre 6 Litre 12 Litre 30 Litre
External (mm) 235w x 135d x 190h 305w x 190d x 230h 370w x 200d x 275h 380w x 290d x 330h 575w x 355d x 330h
Internal (mm) 190w x 85d x 60h 220w x 120d x 100h 275w x 125d x 150h 300w x 215d x 200h 475w x 270d x 200h
Basket Internal (mm) 155w x 70d x 35h 195w x 105d x 50h 255w x 105d x 95h 250w x 195d x 135h 450w x 255d x 135h

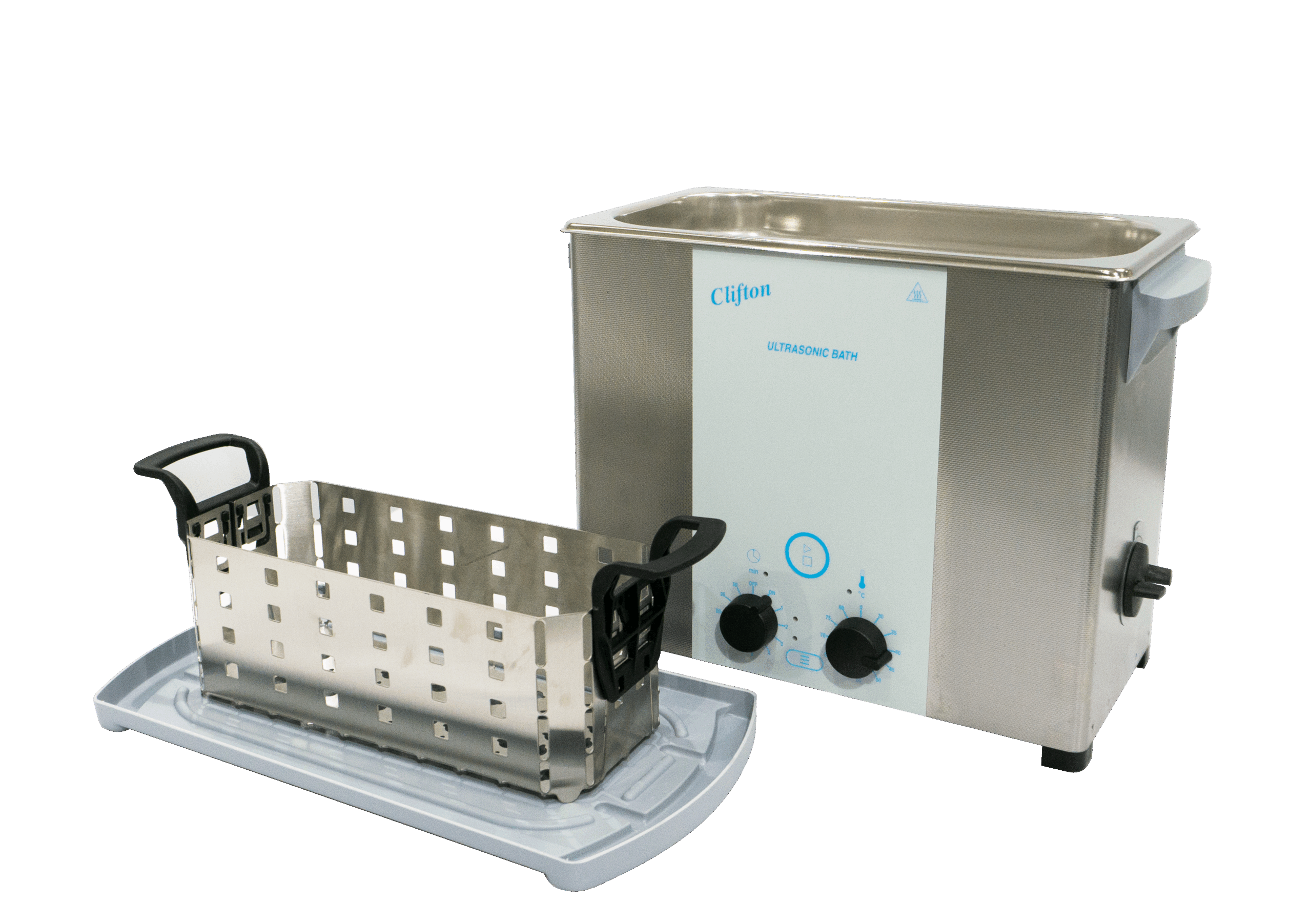

lid and basket

Complete with lid and basket

All SW range of Ultrasonics come complete with lid and basket.


Features and Benefits

Clifton sonicating water baths are designed with high power piezoelectric transducers

Clifton sonicating water baths are designed with high power piezoelectric transducers ensuring maximum ultrasonic power throughout working area.

2 Year Warranty

2 Year Warranty

Each bath is uniquely identified with its own serial number recorded on our product database.

Each bath is uniquely identified with its own serial number recorded on our product database, which includes all of its manufacturing inspection data. Electrically tested for safety at final inspection and a test certificate enclosed in rear of the instruction book.

A 304 spec stainless steel tank gives good resistance to many substances and a clean appearance throughout its working life.

A 304 spec stainless steel tank gives good resistance to many substances and a clean appearance throughout its working life.

Concealed heater and temperature sensors.

Concealed heater and temperature sensors.

Easy to clean tank.

Easy to clean tank.

Safety Features

• Bath fitted with non-slip rubber feet.

• Heating elements are controlled electronically to reduce energy demand and prevent overheating if allowed to run dry.

Controls icon

Controls

The touch pad, wipe clean, control panel with rotary dials for time and temperature, can be set between 30°C and 80°C in 5°C increments. The timer can be selected to operate between 1-30 minutes or continuously up to 6 hours.

Ultrasonic information and applications

Ultrasonic information
This range is designed for intermittent and 'permanent on' use. Eco mode enables energy efficient and low noise operation, the Dynamic mode allows removal stubborn dirt. Do not allow items to touch base the of the tank.
Laboratory Applications
For the cleaning of glassware and complicated instruments. HPLC solvent degassing. Removal of chemical residues, baked residues from chemical reactions and microbiological residues.

Stainless Steel Wire Basket

Stainless steel. Baskets recommended for use with ultrasonic and unstirred baths. Allows direct immersion of samples in the bath.
Stainless steel for corrosion resistance.
Convenient lifting handles enables contents to be removed without immersing your hands.
Can accommodate lids when basket is used.

Stainless steel wire basket
Product Code Bath
BSK-1 SW1H
BSK-3 SW3H
BSK-6 SW6H
BSK-12 SW12H
BSK-22 SW30H

BX0613 – Ultrasonic Detergent

Neutral foam-inhibited cleaning concentrate removes grease and oil, fingerprints and dust as well as deposited lime soaps. Suitable for all surfaces made of metal (including aluminium and light metal alloys), glass, ceramic, plastic and mineral materials. 2.5 litres.
Ph-value 8.2
Recommended dosage for SW range ultrasonic bath = 2%

Downloads



The water bath brochure contains all the information on our Clifton water baths, including the shaking baths and the ultrasonic baths.
