NE1M-25 Mini Incubator

Temperature Range : Ambient +5°C - 60°C

Image Hotspots with Tooltip (Hover)

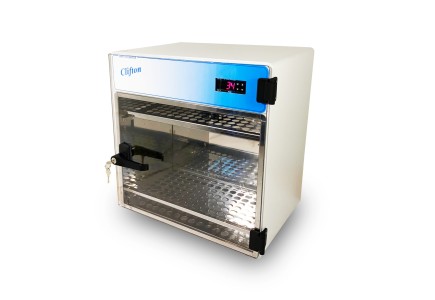

The Mini Incubator is a compact, durable model ideal for sample incubation in education or laboratory settings. The 25 litre chamber is manufactured from high quality corrosion resistant stainless steel within a steel body, with antibacterial paint finish. The PID temperature controller is secured behind a lockable polycarbonate clear door, to prevent unauthorised adjustment and allows full view of the chamber. Supplied with 2 stainless steel removable perforated shelves, the chamber is designed to take multiple petri dishes and 1 litre bottles. The heaters are concealed behind the inner chamber walls ensuring uniform and stable gravity convection.

Sustainability Attributes

Built to last, ensuring longevity

Products are recyclable

Compostable and biodegradable packaging

See the range of accessories compatible with the NE1M-25 range.

3 YEAR WARRANTY

The NE1M-25 Series comes with a 3 year warranty as standard, we also offer free advice and support.

MADE IN GREAT BRITAIN

The NE1M-25 Series is made here in Great Britain with the highest quality of materials.

Please see below our full range of sizes for the NE1M-25 range.

Specifications

Product Code	NE1M-25
Chamber Capacity	25 Litres
Temperature Range	Ambient + 5°C - 60°C
Temperature Control	PID Digital, LED display showing actual or set temperature, resolution 1°C
Temperature Sensor	TC K probe with control diagnostics at power up
Temperature Fluctuation 37°C	±0.2°C
Temperature Variation 37°C	±0.5°C
Temperature Heat Up 37°C	10 Minutes
Temperature Door Open Recovery 37°C	5 Minutes
Chamber Convection	Gravity Convection
Temperature Alarm	Over temperature alarm automatically set 5°C above set temperature
Door	Single clear polycarbonate door, lockable
Shelves Fitted & Max.	2 Perforated / 2 Max.
Shelving Locations	2 Fixed positions
Shelf Max. Load	10kg
Heater Power	260W
Voltage	230V 50/60Hz
Dimensions
External (mm)	451w x 377d x 467h
Internal (mm)	400w x 250d x 320h
Feet/Castors	Fixed rubber feet

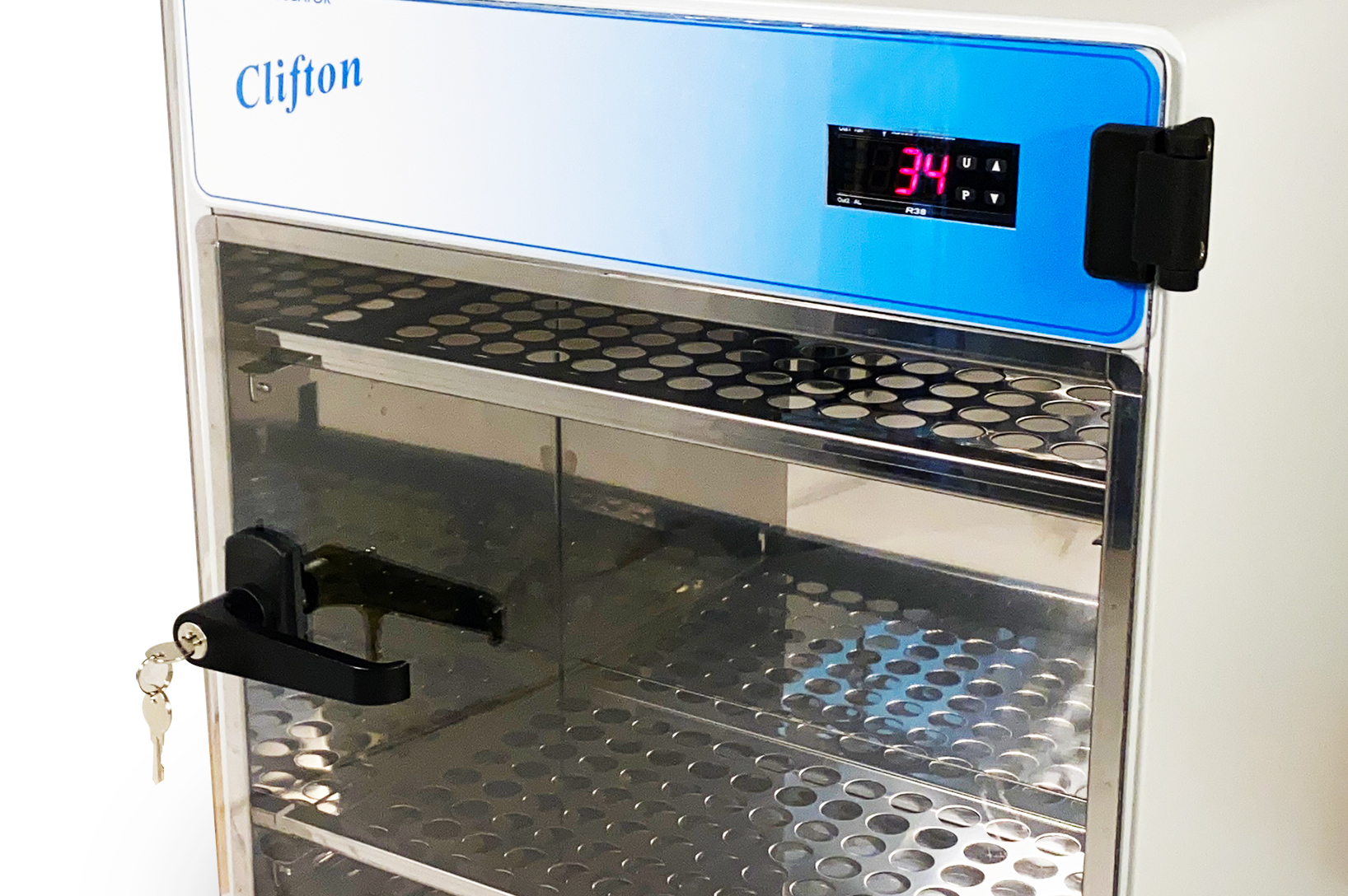

Lockable Door

Lockable polycarbonate clear door, to prevent unauthorised adjustment and allows full view of the chamber.

Features and Benefits

The heaters are concealed behind the inner chamber walls ensuring accurate and stable gravity convection.

The Clifton mini incubator feature intuitive easy to use PID controller.

3 Year Warranty

Before leaving our factory every product is identified with a unique serial number and undergoes a factory calibration adjusting control to known traceable value. Electrically tested for safety at final inspection and a test certificate enclosed in rear of the instruction book.

The chamber is constructed from high quality stainless steel with high efficiency thermal insulation, contained within an outer steel housing with anti-bacterial paint finish.

Safety Features

• Over temperature alarm is automatically set 5°C above set point.

• Fitted with Class 1 oven temperature thermostat for overall unit protection.

0.05kWh at 37°C
0.15kWh at 60°C
The lower the figure, the less energy used. Information supplied for size and range comparison, guidance only and consumption measured at set point. Please remember that the energy consumption may vary due to factors such as location, ventilation, ambient temperatures and loading.

PID Digital, LED display showing actual or set temperature, resolution 1°C.

Before ordering please check the room or building access where this unit will be installed and electrical power requirements. Temperature fluctuation measurements are based on temperature readings on shelf in centre of the chamber. Allow a 100mm air gap away from wall at rear. Ensure there is a minimum 300mm air gap from top of the unit to ceiling. Do not place in direct sunlight or near a heat or cold source.
