DC1-300 Immersion Cooler

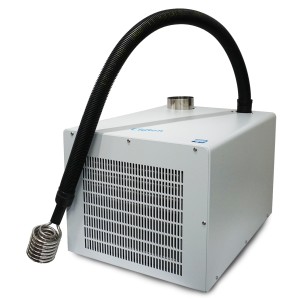

DCI-300 New image

Designed to be used in conjunction with a Clifton stirred or circulating water bath, the DC1-300 features a flexible 900mm long pipe. When placed through the aperture on the top of the bridge unit the stainless steel cooling coil naturally stands in the corner of any Clifton NE4 (Not NE4T Range) stirred or circulating water bath. This maximises the working area within the bath.

The immersion cooler runs continuous counter cooling with the bath providing temperature control from ambient to -20°C (subject to bath capacity). Always cover the water bath with a lid or BP0368 polypropylene spheres. This reduces energy loss by up to 70%.

See the range of accessories compatible with the DC1-300 range.



3 Year Warranty

3 YEAR WARRANTY

The DC1-300 Series comes with a 3 year warranty as standard, we also offer free advice and support.

Made in Great Britain

MADE IN GREAT BRITAIN

The DC1-300 Series is made here in Great Britain with the highest quality of materials.

Please see below our full range of sizes for the DC1-300 range.

Specifications



Product Code DC1-300
Temperature Range -20 to 20°C

Refer to Recommended fluids for fluid type and working temperature range
Temperature Control None

Continuously providing counter cooling with water bath providing temperature control
Cooling Power 10°C: 800W
0°C: 580W
-10°C: 400W
-20°C: 250W
Refrigerant: R134a
Power Consumption 600W
Voltage 230V 50-60Hz
Dimensions
External (mm) 345w x 445d x 265h
Cooling Coil Stainless steel coil wound diameter 65mm on the end of a 900mm long flexible cooling line

Notes icon

Notes

Normal operating performance is within an ambient temperature range of 10°C to 20°C. Where ambient temperature range exceeds 20°C this affects cooling performance.

For optimum cooling performance ensure 40cm of free air around the ventilation slots.

To achieve optimum performance with any stirred or circulating bath use a lid or BP0368 polypropylene spheres at all times. This can reduce up to 70% of ambient room temperature being transferred into the bath being cooled. Doubling this layer of polypropylene spheres or using a lid in conjunction with spheres can reduce heat transfer by up to 90%.

The immersion cooler is not suitable for use with unstirred water baths.

Reconmmended fluids icon

Recommended Fluids

Mix of water and glycol: -20°C to 20°C

Cooling Times

0°C
13 Minutes

-10°C
22 Minutes

-20°C
40 Minutes

Downloads



The water bath brochure contains all the information on our Clifton water baths, including the shaking baths and the ultrasonic baths.
