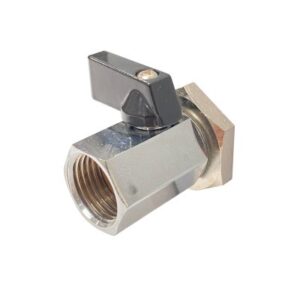

Drain Tap Fitted
Drain tap fitted on baths 8 litres and above.
Features and Benefits
The shelf is a low height design maximising the working height.
Safety Features
• Thermal cut out fitted in the heater.
• IP rated clear booted on/off power switch.
• Bath fitted with non-slip rubber feet.
• Over temperature alarm automatically set 4˚C above set temperature with visual indicator and heating is turned off protecting samples from overheating.
Energy Consumption
0.33kWh @ 37°C
0.34kWh @ 60°C – Lid fitted
(Based on NE3-8DT)
The lower the figure, the less energy used. Information supplied for size and range comparison, guidance only and consumption measured at set point. Please remember that the energy consumption may vary due to factors such as location, ventilation, ambient temperatures and loading.
Controls
Featuring bold LED display of measured temperatures in real-time, increments of 0.1°C, using precision PID temperature control. Settings retained even after turning the unit off. Easy to use splash proof controls, touch keypads for setting temperature values with indicators for heating and over temperature alarm. Features auto setting over temperature alarm protecting samples at set temperature. Every unit undergoes a factory calibration at two temperatures for validation.
Heating and Sensors
Heaters and temperature sensor are concealed under the tank providing an easy to clean working area. The heating footprint covers the underside of the tank and with a low mass provides rapid energy transfer, resulting in quicker heat up times and a reduction in energy consumption and improved temperature uniformity.
Heating Information
Above 60°C it is recommended that to achieve optimum performance the bath should be covered with a lid or layer of polypropylene spheres – see accessories. Covering the bath with a lid reduces energy consumption and running costs. This range of baths will operate at 100°C however are not designed for continuous boiling, the NE1B boiling bath range is recommended.

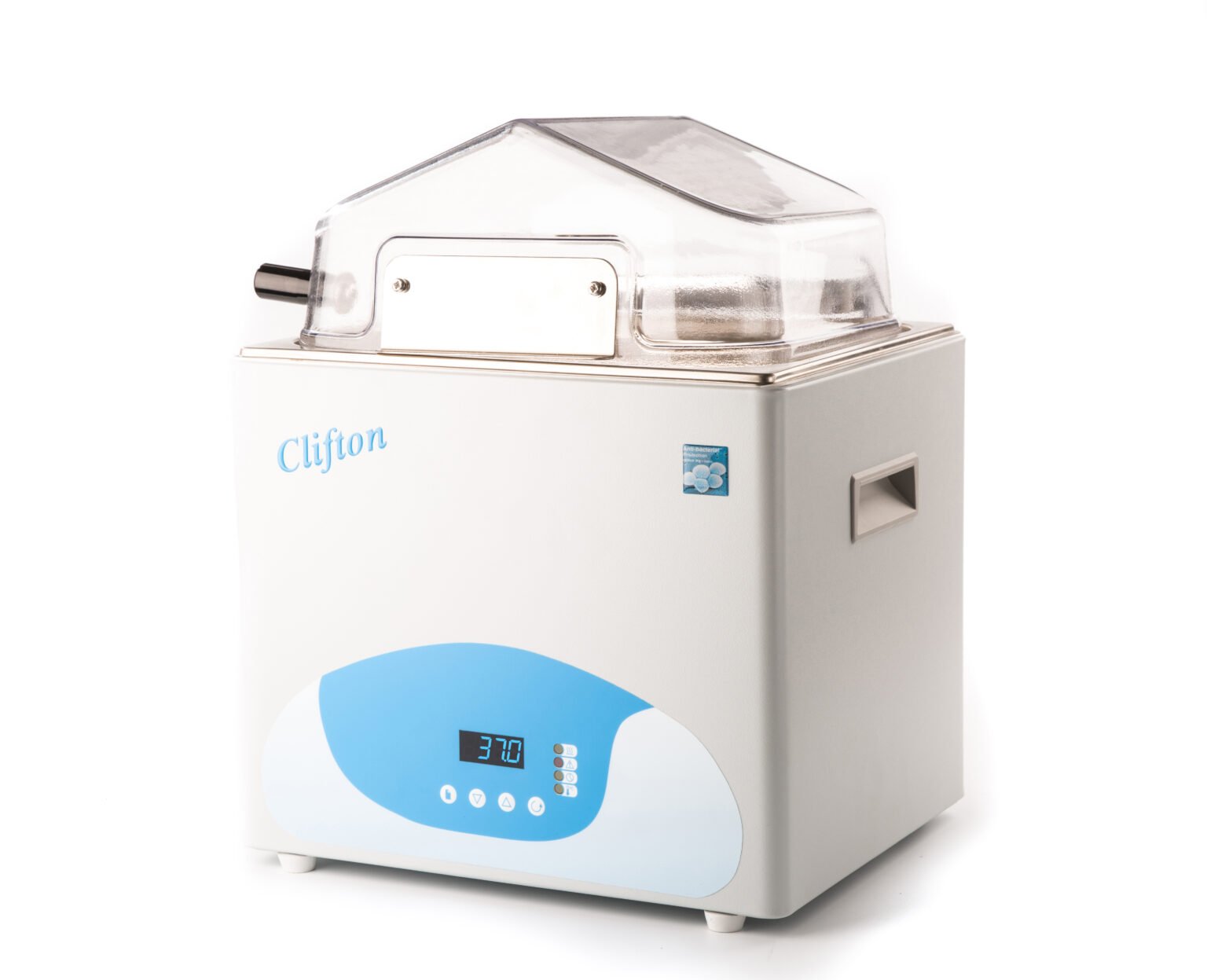

Clear Lift Off Gable Lid
Clifton clear gable lids help reduce evaporation, assist in keeping samples in a water bath free from contamination and save energy. These gable lids with a high profile allows extended use of the bath, right into the edges of the tank. No drip points to contaminate samples. The lid design ensures all condensate returns back into the bath. Insulated handles for safe use.
| Product Code | Bath |
|---|---|
| GL1-4AF | NE3-4DT |
| GL1-8AF | NE3-8DT |
| GL1-14AF | NE3-14DT |
| GL1-22AF | NE3-28DT |
Stainless Steel Flat Lid
When fitted, this lid prevents contamination of liquid from airborne particles. Can also be useful when a Clifton water bath is ‘in use’, minimising heat loss, saving energy, and assisting to maintain bath temperature ready for the next application. The lid is fitted with an insulated handle.
| Product Code | Bath |
|---|---|
| LD-4 | NE3-4DT |
| LD-8 | NE3-8DT |
| LD-14 | NE3-14DT |
| LD-22 | NE3-28DT |
| LD-56 | NE3-56DT (Please note - LD-56 is a 2 piece lid) |
Stainless Steel Hinged Gable Lid
Clifton stainless steel hinged gable lids reduce evaporation, assist in keeping samples in a water bath free from contamination and save energy. These stainless steel gable lids with a high profile design allow extended
use of the bath, right into the edges of the tank. No drip points and condensate returns back into the bath.
Hinged lids have a number of benefits in use over lift off lids, they simply hinge open, any condensation collects in the lid, samples can be easily removed or placed in water bath. Close the lid and all the collected condensation runs into rear of the water bath.
| Product Code | Bath |
|---|---|
| SL1-14H | NE3-14DT |
| SL1-22H | NE3-28DT |
Stainless Steel Lift Off Gable Lid
Clifton stainless steel gable lids help reduce evaporation, assist in keeping samples in a water bath free from contamination and save energy. These stainless steel gable lids with a high profile allow extended use of the bath, right into the edges of the tank. No drip points to contaminate samples. The lid design ensures all condensate returns back into the bath. Insulated handles for safe use.
| Product Code | Bath |
|---|---|
| SL1-4 | NE3-4DT |
| SL1-8 | NE3-8DT |
| SL1-14 | NE3-14DT |
| SL1-22 | NE3-28DT |
| SL1-56 | NE3-56DT |
Stainless Steel Wire Basket
Stainless steel. Baskets recommended for use with ultrasonic and unstirred baths. Allows direct immersion of samples in the bath.
Stainless steel for corrosion resistance.
Convenient lifting handles enables contents to be removed without immersing your hands.
Can accommodate lids when basket is used.
| Product Code | Bath |
|---|---|
| BSK-4 | NE3-4DT |
| BSK-8 | NE3-8DT |
| BSK-14 | NE3-14DT |
| BSK-22 | NE3-28DT |
Stainless Steel Test Tube Racks
Laboratory test tube rack, stainless steel 304 spec 18/8 non-magnetic, bright finish. Supplied flat packed ready for assembly. Can be cleaned with detergents, ultrasonics or autoclaved. Durable and stable in use with looped handles for easy retrieval from hot water baths.
• NE3-4DT = 1 rack
• NE3-8DT = 2 racks
• NE3-14DT = 4 racks
• NE3-28DT = 6 racks
• NE3-56DT = 12 racks
| Product Code |
|---|
| 6870 - (26 holes x 17mm diameter) |
| 6871 - (16 holes x 26mm diameter) |
| 6872 - (36 holes x 13mm diameter) |
| 6873 - (18 holes x 19mm diameter) |
| 6900 - (12 holes x 32mm diameter) |
Hose Tail Nozzle
The hose tail nozzle attaches to the tap to allow connection for 12mm i.d rubber hose.
| Product Code | Bath |
|---|---|
| BX0952 |
NE3-8DT NE3-14DT NE3-28DT NE3-56DT |
Stainless Steel Concentric Ringed Lid
The lid and rings are manufactured from stainless steel. The concentric rings provide varying hole diameters in the lid. In use the lid minimises evaporation and maintains temperature stability of the water bath when tall vessels are being heated at elevated temperatures.
- SLR1-4 : 2 x 114mm holes
- SLR1-8 : 4 x 83mm holes
- SLR2-8 : 2 x 114mm holes
- SLR1-14 : 4 x 114mm holes
- SLR2-14 : 6 x 83mm holes
- SLR1-22 : 6 x 114mm holes
| Product Code | Bath |
|---|---|
| SLR1-4 | NE3-4DT |
| SLR1-8 SLR2-8 |
NE3-8DT |
| SLR1-14 SLR2-14 |
NE3-14DT |
| SLR1-22 | NE3-28DT |
By removing concentric rings, the hole sizes can be varied to accommodate different sizes of vessel.
Centre ring – removed, aperture 30mm hole.
Ring 1 – removed, aperture 42mm hole.
Ring 2 – removed, aperture 58mm hole.
Ring 3 – removed, aperture 77mm hole.
Ring 4 – removed, aperture 114mm hole.
Universal Accessories
Bath Armor™ is moisture and gas impermeable, high thermal conductivity, smooth and rounded almost fluid like and reduces your water consumption.
| Product Code | Capacity |
|---|---|
| BA-5 : 4 Litre Pack | 4 Litre baths |
| BA-12 : 12 Litre Pack | 8 Litre baths 14 Litre baths 28 Litre baths need 2 packs 56 Litre baths need 4 packs |
This blanket of hollow spheres is ideal for open tanks of water. Reduces thermal losses – Savings of up to 60% can be achieved with a single layer – Increase energy saving & reducing costs.
| Product Code | Capacity |
|---|---|
| BP0368 : 1 Pack | 4 Litre Baths |
| BP0368 : 2 Packs | 8 Litre baths 14 Litre baths |
| BP0368 : 4 Packs |
28 Litre baths need 2 packs 56 Litre baths need 4 packs |
Allows easy and quick emptying of water baths, immerse into water bath, squeeze the bellow and point the outlet to a bucket or sink.
Notes: Water temperature must be below 45°C before use.
Product Code: BX0616
Factory Calibration record must be ordered with equipment.
- Factory calibration record.
- The completed calibration record will be enclosed at the rear of the instruction book accompanying the Clifton unit carrying the following information:
Unique record number for traceability. Serial number of the unit. Instrument it was checked against. Calibration temperature and actual sensitivity results. - The measurement of uncertainty ±0.8°C. Ambient temperature 21°C ±3°C.
Notes:
- The calibration record provides a measurement of precision about set point with maximum and minimum sensitivity readings obtained. Precision is defined as “(1) The ability of a measurement to be consistently reproduced” and “(2) The number of significant digits to which a value has been reliably measured”.
- The calibration record does not provide or assures any form of accuracy. Accuracy is defined as “the ability of a measurement to match the actual value of the quantity being measured”.
Product Code : CAL
