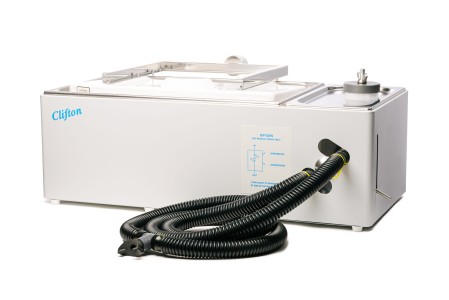

SM-1 Student Spirometer

SM-1

The student spirometer can be used for investigating tidal volumes, respiratory rate, pulmonary ventilation, reserve volumes and vital capacity. Oxygen consumption can also be measured which is useful in metabolic studies.

A simple lever control enables the subject to be connected either to atmosphere or to the float for recording. A container for soda lime crystals is fitted which can be used to absorb carbon dioxide. The spirometer is designed to offer minimum resistance to air flow. This means greater comfort for the subject and more realistic results. The tank is one piece stainless steel pressing housed in a durable painted outer case. The float is constructed from lightweight plastic and is calibrated 0 to 7 x 0.5 litres with a metal counterpoise. The pen arm corresponds to approximately 0.5 litres.

Supplied with a mouth piece that fits into the corrugated breathing hoses which connects into the spirometer.

Nose clip and pen arm are included.

See the range of accessories compatible with the SM-1 range.



1 Year Warranty

1 YEAR WARRANTY

The SM-1 Series comes with a 1 year warranty as standard, we also offer free advice and support.

Made in Great Britain

MADE IN GREAT BRITAIN

The SM-1 Series is made here in Great Britain with the highest quality of materials.

Please see below our full range of sizes for the SM-1 range.

Specifications

SM-1



Product Code SM-1
Dimensions
External (mm) 720w x 320d x 230h

Safety Features

• In the investigation of the effects of exercise upon breathing rate, pulse rate, body temperature etc., pupils should not be allowed to take part if they are not permitted to undertake ordinary school P.E activities.

• When using spirometers for gas analysis, be aware of the possible consequences of hyperventilation or holding the breath. If the experiment requires a supply of oxygen it must be of medical quality.

Notes icon

Notes

1. Soda lime crystals are not supplied.

2. A Kymograph or datalogger system is required to record results.

3. Medical Grade oxygen cylinder is also recommended.

Corrugated Breathing Tube

Corrugated breathing tube
Product Code
BX0331

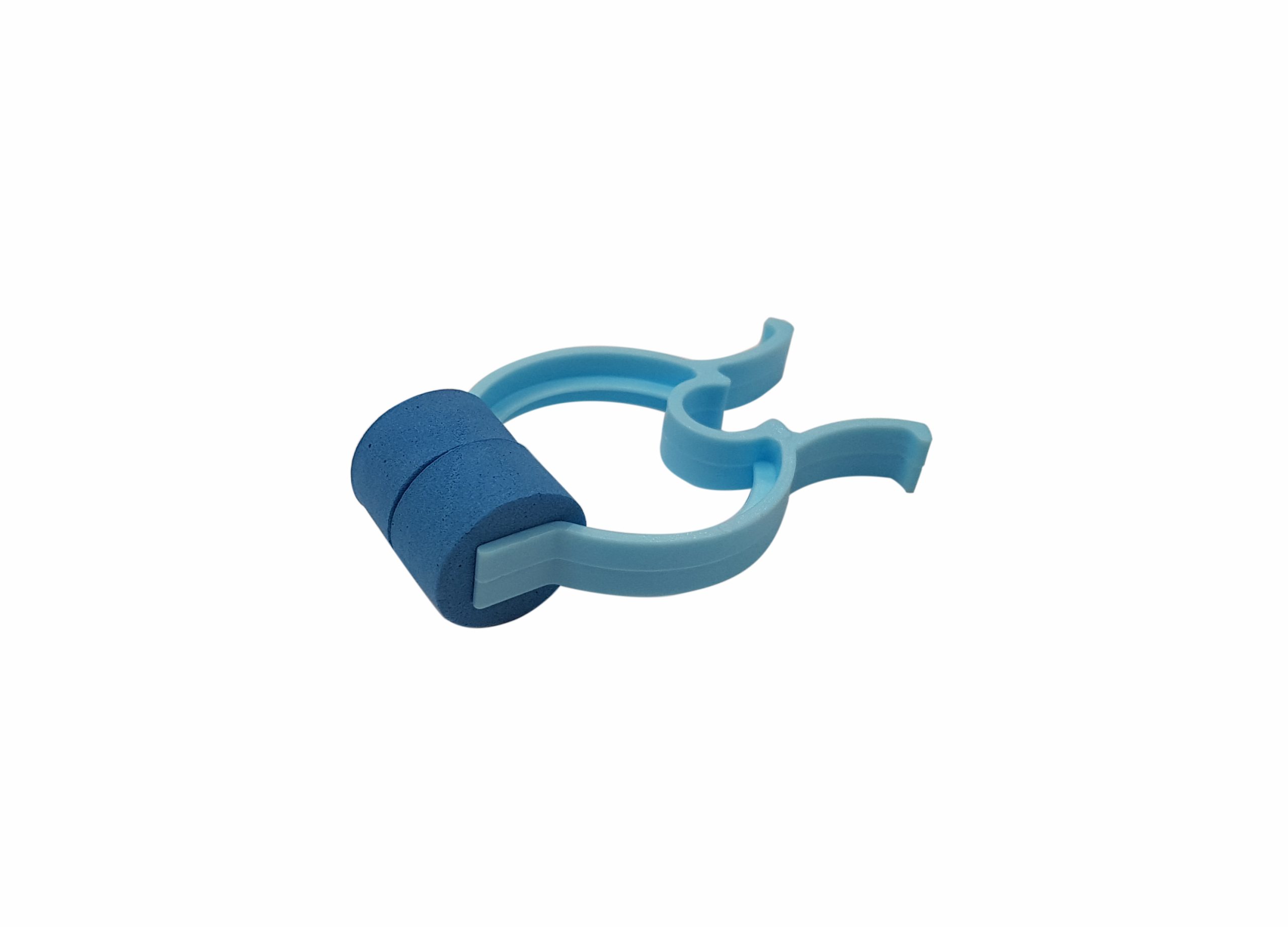

Disposable Nose Clip

Cushion nose pads and single patent use.

Disposable nose clip
Product Code
BP0555

Adapter for Breathing Filter

Adapter for breathing filter
Product Code
MXM0894

Disposable Filtered Breathing Mouth Piece

1. For single student use.
2. Bacterial/viral filter, 99.9999% efficiency, electrostatic media.
3. Independent test at Nelson Laboratories USA and tested at Royal Brompton Hospital.
Features
1. This filter prevents small particulate matter or micro-organisms from entering the body.
2. Mechanical pleated filters carry hydrophobic properties which provide a complete barrier to viral pathogens under normal conditions.

Disposable filtered breathing mouth piece
Product Code
BX0978

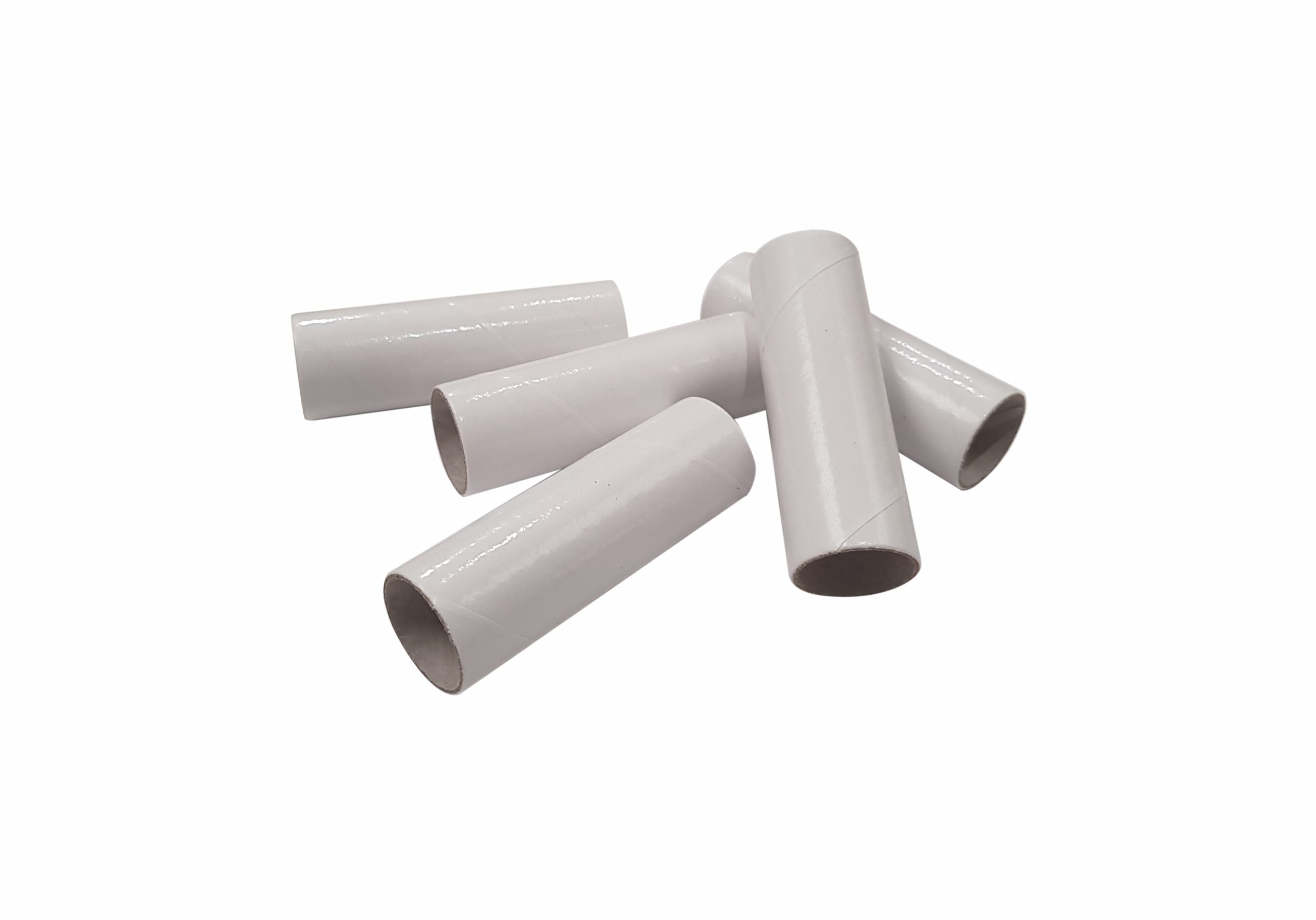

Disposable Mouth Pieces

Supplied in packs of 100.

Disposable mouth pieces
Product Code
BX0612

Mouth Piece

mouth piece
Product Code
BP0433
