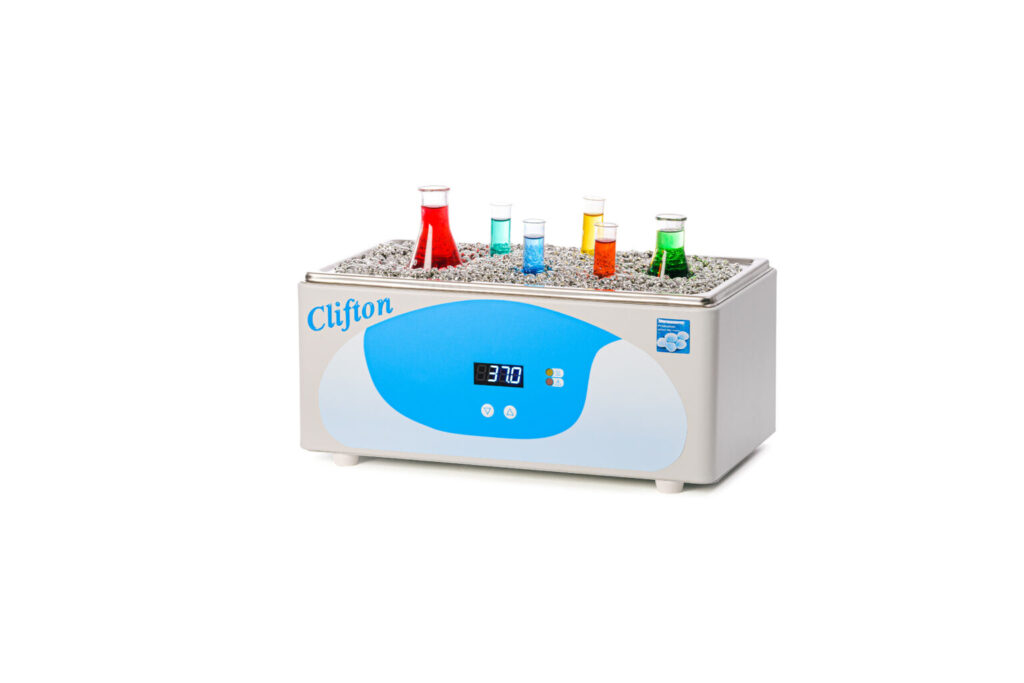

ShallowBath™ with Bath Armor™

Temperature Range : Ambient + 5°C - 99°C

Clifton digital ShallowBath™ is perfect for heating small height samples such as micro tubes, micro plates and bottles. Controls feature auto alarm setting, illuminated on/off switch, heater and over temperature indications.

Comprising of a high quality corrosion resistant stainless steel tank, with a bright clean finish housed in a durable painted outer case. Painted surfaces feature anti-bacterial finish with a good
chemical resistance.

Personal, small footprint water bath, providing a stable temperature environment for life science preparations.

Supplied with Bath Armor™ which is environmentally friendly, eliminates waterborne contamination and allows bottles and tubes of varying sizes to stay in place.

See the range of accessories compatible with the NE2-2DBA range.



3 Year Warranty

3 YEAR WARRANTY

The NE2-2DBA Series comes with a 3 year warranty as standard, we also offer free advice and support.

Made in Great Britain

MADE IN GREAT BRITAIN

The NE2-2DBA Series is made here in Great Britain with the highest quality of materials.

Please see below our full range of sizes for the NE2-2DBA range.

Specifications


Product Code NE2-2DBA
Chamber Capacity 2 Litres
Temperature Range Ambient + 5°C - 99°C
Temperature Control PID Digital, LED display showing actual or set temperature, resolution 0.1°C
Temperature Alarm Over temperature alarm is automatically set 4˚C above set point
Sensitivity ±0.8°C
Heater Power (220-240V) 200W
Voltage 120V or 230V models available 50-60Hz
Dimensions
External (mm) 332w x 185d x 135h
Internal (mm) 300w x 150d x 65h
Water Level Max. (mm) 40
Water Level Min. (mm) 20

Safety Features

• Thermal cut out fitted in the heater.

• IP rated clear booted on/off power switch.

• Bath fitted with non-slip rubber feet.

• Over temperature alarm automatically set 4˚C above set temperature with visual indicator and heating is turned off protecting samples from overheating.

Energy consumption icon

Energy Consumption

£0.04p (KW Per Hour)@ 37°C
The lower the figure, the less energy used. Information supplied for size and range comparison, guidance only and measured consumption at set point. Please remember that the energy consumption may vary due to factors such as location, ventilation, ambient temperatures and loading.

Controls icon

Controls

Featuring bold LED display of measured temperatures in real-time, increments of ±0.1°C, using precision PID temperature control. Settings retained even after turning the unit off. Easy to use splash proof controls, touch keypads for setting temperature values with indicators for heating and over temperature alarm. Features auto setting over temperature alarm protecting samples at set temperature. Every unit undergoes a factory calibration at two temperatures for validation.

heating and sensors icon

Heating and Sensors

Heaters and temperature sensor are concealed under the tank providing an easy to clean working area. The heating footprint covers the underside of the tank and with a low mass provides rapid energy transfer, resulting in quicker heat up times and a reduction in energy consumption and improved temperature uniformity.

Heating information icon

Heating Information

This range of baths will operate at 99°C however are not designed for continuous boiling.

Downloads



The water bath brochure contains all the information on our Clifton water baths, including the shaking baths and the ultrasonic baths.
