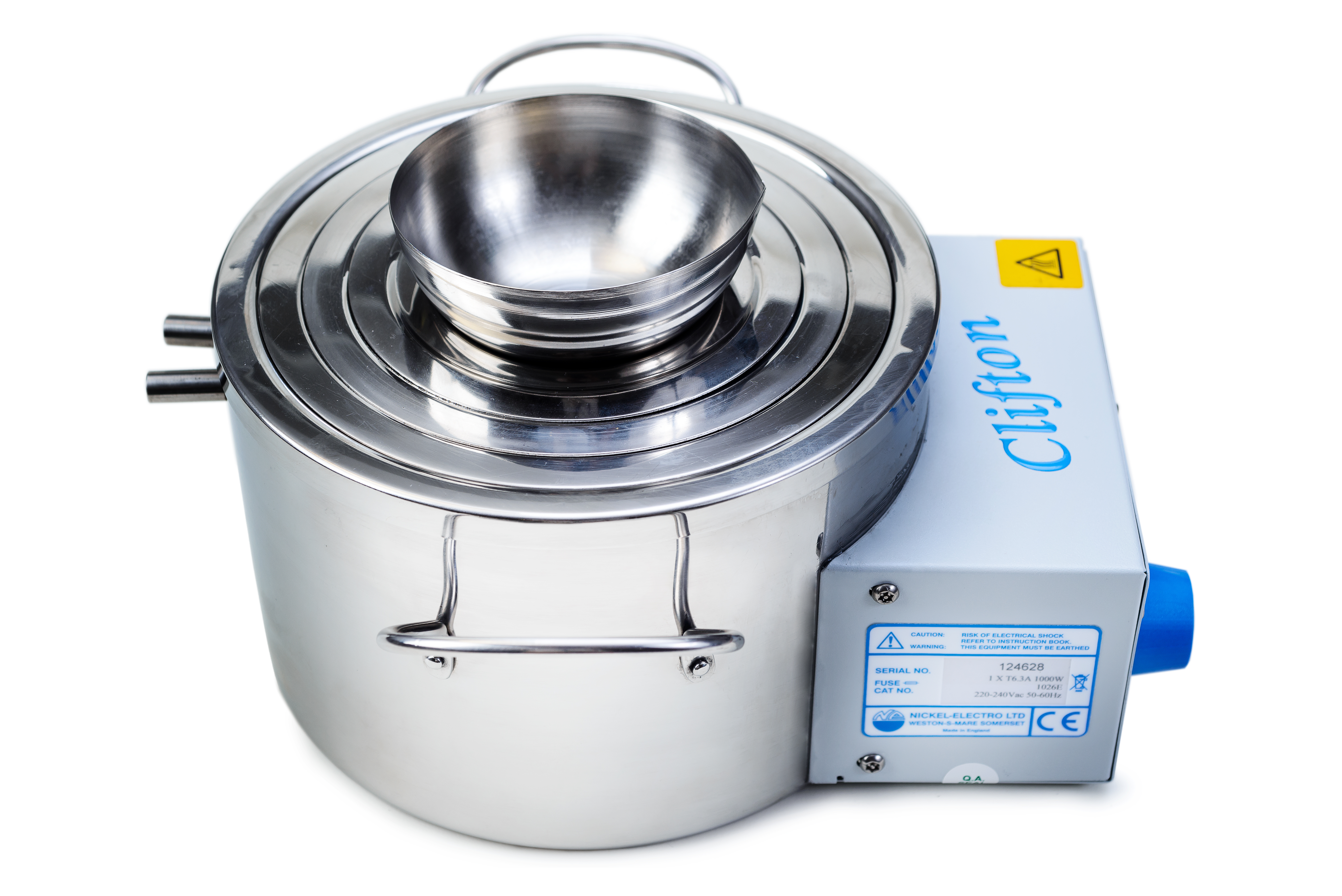

1000 Series Round Boiling Baths

Stainless steel round boiling baths. 1026ER regulates from a gentle simmer to a vigorous boil, whereas the 1026E continuously boils. Both fitted with a sheathed immersion heater and constant water level device, with resettable thermal cut out for low water level condition. Supplied with a set of rings to vary the aperture diameter accommodating different sizes of vessels such as evaporating dishes, glassware and round bottom flasks heated by steam.
The steam produced provides an effective source of heat for samples:

That may be otherwise thermally damaged by a naked flame.
Used for applications to distil/concentrate liquids, melt agar and other solids.
Metallurgical analysis, protein analysis and bacteriological examinations.

See the range of accessories compatible with the 1000 range.

2 YEAR WARRANTY

The 1000 Series comes with a 2 year warranty as standard, we also offer free advice and support.

MADE IN GREAT BRITAIN

The 1000 Series is made here in Great Britain with the highest quality of materials.

Please see below our full range of sizes for the 1000 range.

Specifications


Product Code	1026ER	1026E
Chamber Capacity	3.24 Litres
Temperature Range	Simmer to boiling at 100°C	Boiling at 100°C
Temperature Control	Featuring an energy regulator which controls the amount of boiling from a gentle simmer to vigorous boil	Constant boiling no control
Heater Indicator	This indicates ON = heating, off safety cut out has fired
Heater Power (220-240V)	1000W
Voltage	230V models 50-60Hz
Dimensions
External (mm)	200w x 130d

Concentric Rings

By removing concentric rings, the hole sizes can be varied to accommodate different sizes of vessel.
Centre ring – removed, aperture 30mm hole.
Ring 1 – removed, aperture 42mm hole.
Ring 2 – removed, aperture 58mm hole.
Ring 3 – removed, aperture 77mm hole.
Ring 4 – removed, aperture 103mm hole.
Ring 5 – removed, aperture 128mm hole.
Ring 6 – removed, aperture 153mm hole.

Features and Benefits

2 Year Warranty

Painted surfaces feature “anti-bacterial technology” which inhibits bacterial growth, improving hygiene requirements as demanded by clinical and laboratory environments.

Smooth walled tank making it easy to clean and de-scale.

All baths have an integral constant level device to regulate the level of water.

Supplied with concentric ringed lid to vary the diameter holes.

Each bath is uniquely identified with its own serial number recorded on our product database, which includes all of its manufacturing inspection data. Electrically tested for safety at final inspection and a test certificate enclosed in rear of the instruction book.

Safety Features

• The constant level device has a visible water spout to check that water in the boiling bath is maintaining working level. This prevents the chance of the water bath being boiled dry.

• Resettable safety cut out.

1026ER
This model regulates water from gentle simmer to vigorous boil. Always place the boiling bath on a heat proof surface. Heater indication lamp.
1026E
The bath provides constant boiling water for gentle heating of samples by steam. Always place the boiling bath on a heat proof surface. Power on indicator.

Downloads

The water bath brochure contains all the information on our Clifton water baths, including the shaking baths and the ultrasonic baths.
