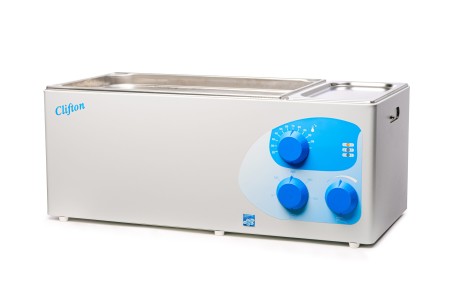

| Product Code | NE5-28 |
| Chamber Capacity | 28 Litres |
| Temperature Range | Ambient + 5°C - 99°C |
| Temperature Alarm | Adjustable over temperature device |
| Temperature Control | Analogue dial pointer
Graduated in 10°C divisions |
| Sensitivity | ±0.2°C at 45°C
Optimal water level 75 to 120mm |
| Uniformity | ±0.1°C at 45°C
Optimal water level 75 to 120mm |
| Heater Power (220-240V) | 1000W |
| Voltage | 230V 50-60Hz |
| Linear Shaking Control | Shaking control variable 0 to 400 strokes / 0 to 200rpm |
| Stroke Length | Variable up to 40mm stroke |
| Speed Display | Analogue |
| Drain Outlet | ✅ |
| Dimensions | |
| External (mm) | 715w x 332d x 290h |
| Internal (mm) | 500w x 298d x 200h |
| Perforated Shelf/Trolley Size (mm) | 389w x 270d |
| Water Level Maximum (mm) | 120 |
| Water Level Minimum (mm) | 50 |
Features and Benefits
Safety Features
• Thermal cut out fitted in the heater.
• Bath fitted with non-slip rubber feet.
• Adjustable over temperature device can be set a few degrees above the set working temperature, protecting samples from overheating/damage.
Energy Consumption
0.55kWh @ 37°C
0.55kWh @ 60°C – lid fitted
The lower the figure, the less energy used. Information supplied for size and range comparison, guidance only and measured consumption at set point. Please remember that the energy consumption may vary due to factors such as location, ventilation, ambient temperatures and loading.
Controls
Analogue temperature control and dial pointer, from 0 to 380rpm. Stroke length is variable up to 40mm, opening the access port allows the stroke length to be varied. Every unit undergoes a factory temperature calibration for validation.
Speed Control
Shaking speed control is by analogue dial pointer graduated in 100rpm divisions from 0-400. Stroke length is variable up to 40mm. Opening the side access port allows stroke length to be varied.
Heating and Sensors
Heaters are concealed under the tank providing a clutter free working area easy to wipe clean. The heating footprint covers underside base of the tank, its low mass provides rapid energy transfer; quicker heat up times and a reduction in energy consumption with improved temperature uniformity.
Heating Information
Above 60°C it is recommended that to achieve optimum performance the bath should be covered with a lid or layer of polypropylene spheres – see accessories. Covering the bath with a lid reduces energy consumption and running costs.
Clear Lift Off Gable Lid
Clifton clear gable lids help reduce evaporation, assist in keeping samples in a water bath free from contamination and save energy. These gable lids with a high profile allows extended use of the bath, right into the edges of the tank. No drip points to contaminate samples. The lid design ensures all condensate returns back into the bath. Insulated handles for safe use.
| Product Code | Bath |
|---|---|
| GL1-22AF | NE5-28 |
Stainless Steel Hinged Gable Lid
Clifton stainless steel hinged gable lids reduce evaporation, assist in keeping samples in a water bath free from contamination and save energy. These stainless steel gable lids with a high profile design allow extended
use of the bath, right into the edges of the tank. No drip points and condensate returns back into the bath.
Hinged lids have a number of benefits in use over lift off lids, they simply hinge open, any condensation collects in the lid, samples can be easily removed or placed in water bath. Close the lid and all the collected condensation runs into rear of the water bath.
| Product Code | Bath | SL1-22H | NE5-28 |
|---|
Stainless Steel Lift Off Gable Lid
Clifton stainless steel gable lids help reduce evaporation, assist in keeping samples in a water bath free from contamination and save energy. These stainless steel gable lids with a high profile allow extended use of the bath, right into the edges of the tank. No drip points to contaminate samples. The lid design ensures all condensate returns back into the bath. Insulated handles for safe use.
| Product Code | Bath | SL1-22 | NE5-28 |
|---|
Clear Hinged Gable Lid
Clifton clear hinged gable lids help reduce evaporation, assist in keeping samples in a water bath free from contamination and save energy. These clear hinged gable lids allow extended use of the bath, right into the edges of the tank. No drip points to contaminate samples. The lid design ensures all condensate returns back into the bath. Insulated handles for safe use.
| Product Code | Bath | GL1-22 | NE5-28 |
|---|
Stainless Steel Test Tube Racks
Laboratory test tube rack, stainless steel 304 spec 18/8 non-magnetic, bright finish. Supplied flat packed ready for assembly. Can be cleaned with detergents, ultrasonics or autoclaved. Durable and stable in use with looped handles for easy retrieval from hot water baths.
NE5-28 = 4 racks. (Will also need STT004 Test Tube Rack Tray with side clips)
| Product Code |
|---|
| 6870 - (26 holes x 17mm diameter) |
| 6871 - (16 holes x 26mm diameter |
| 6872 - (36 holes x 13mm diameter) |
| 6873 - (18 holes x 19mm diameter) |
| 6900 - (12 holes x 32mm diameter) |
Hose Tail Nozzle
The hose tail nozzle attaches to the tap to allow connection for 12mm i.d rubber hose.
| Product Code | Bath | BX0952 | NE5-28 |
|---|
Drain Tap
Water baths with serial numbers greater than 75100 should order this accessory drain tap BX0953. These fast draining outlets provide a gated on/off valve to empty fluids conveniently from the bath.
| Product Code | Bath | BX0953 | NE5-28 |
|---|
Stainless Steel Flask Clips
For personalised clip arrangement, clips are supplied with all necessary fixings to enable them to be attached to the perforated tray SBF01804. It is possible to mix and match a variety of clips sizes to suit different applications. Easy to assemble and remove flask clips from perforated tray. Flask clips are highly flexible/elastic design, allowing glassware to easily slide into the clip and yet remain secure during shaking/mixing. No sharp edges to cut or score glassware. Can be autoclaved.
| Product Code |
|---|
| FC0025 : 25ml |
| FC0050 : 50ml |
| FC0100 : 100ml |
| FC0250 : 250ml |
| FC0500 : 500ml |
| FC1000 : 1000ml |
| FC2000 : 2000ml |
Stainless Steel Flask Clip Tray
A perforated tray, complete with flask clips to suit common sizes of glass/polypropylene Erlenmeyer flasks. The tray simply drops onto the reciprocating trolley and locates snugly. The NE5-28 is supplied with a trolley platform to accommodate universal spring tray, flask clip trays and test tube rack trays. The NE5-28 can hold 1 clip tray from the below range.
| Product Code |
|---|
| SFT0025 : 39 x 25ml |
| SFT0050 : 32 x 50ml |
| SFT0100 : 18 x 100ml |
| SFT0250 : 12 x 250ml |
| SFT0500 : 8 x 500ml |
| SFT1000 : 5 x 1000ml |
| SFT2000 : 6 x 2000ml |
Stainless Steel Test Tube Rack to Fit 28 Litre Bath
Accommodates up to four racks from 690x series. Tray and side clips are supplied ready for easy assembly. For the NE5-28 a test tube rack tray with side clips allows up to 4 test tube racks to be fitted. The tray simply drops onto the reciprocating trolley.
| Product Code | Bath | STT004 | NE5-28 |
|---|
Stainless Steel Universal Spring Tray to Fit 28 Litre Bath
Universal spring clip tray a multi-spring tray for accommodating a variety of flasks and bottle types of various sizes. Featuring a criss-cross pattern of springs, flasks and bottles can be easily inserted and removed.
The NE5-28 is supplied with a trolley platform to accommodate universal spring tray, flask clip trays and test tube rack trays.
Number of flasks which can be accommodated:
25ml and 50ml = 5 rows 7 deep = 35 flasks or bottles
100ml = 3 rows 5 deep = 15 flasks or bottles
500ml = 2 rows 3 deep = 6 flasks or bottles
1000ml = 1 row 2 deep = 2 flasks or bottles.
| Product Code | Bath | SFT9000 | NE5-28 |
|---|
