NE1V Lab Oven/Incubators

Temperature Range : Ambient +5°C - 250°C

Image Hotspots with Tooltip (Hover)

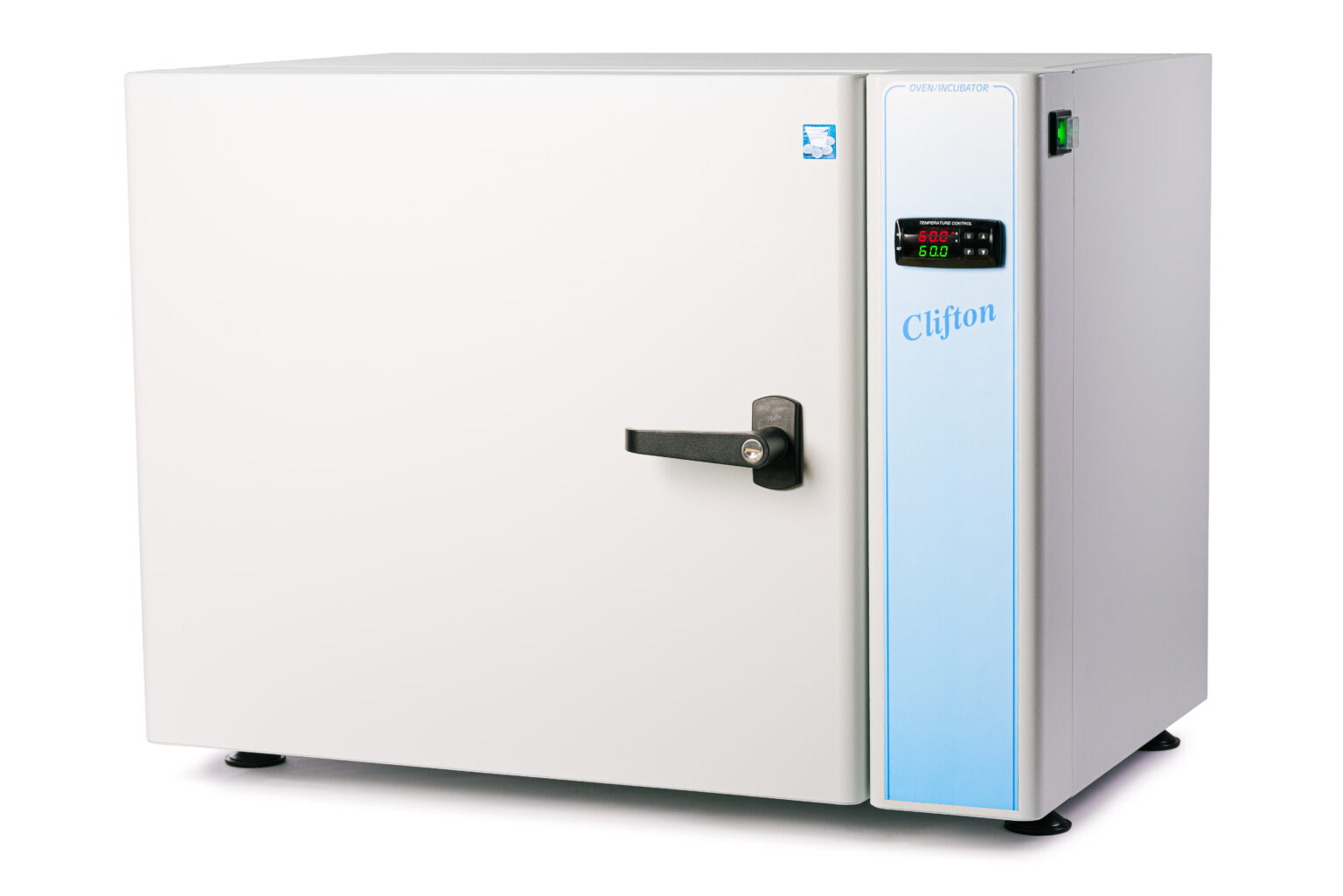

The Oven/Incubator provides a stable temperature environment for general purpose applications and features a digital PID controller for precision. The controls feature an auto alarm and the insulated chamber ensures low energy consumption.

Sustainability Attributes

Built to last, ensuring longevity

Products are recyclable

Compostable and biodegradable packaging

See the range of accessories compatible with the NE1V range.

2 YEAR WARRANTY

The NE1V Series comes with a 2 year warranty as standard, we also offer free advice and support.

MADE IN GREAT BRITAIN

The NE1V Series is made here in Great Britain with the highest quality of materials.

Please see below our full range of sizes for the NE1V range.

Specifications


Product Code	NE1V-32	NE1V-56
Chamber Capacity	32 Litres	56 Litres
Temperature Range	Ambient + 5°C - 250°C
Temperature Control	PID Digital, LED display showing actual or set temperature, resolution 0.1°C
Temperature Sensor	pt100 with control diagnostics at power up
Temperature Fluctuation 37°C	±0.3°C
Temperature Variation 37°C	±1.0°C
Temperature Fluctuation 150°C	±0.5°C
Temperature Variation 150°C	±2.0°C
Temperature Heat Up 150°C	30 Minutes	40 Minutes
Temperature Door Open Recovery 150°C	16 Minutes
Timer	Run back timer 00:01 to 99:59 (hh:mm) at set temperature
Temperature Alarm	Over temperature alarm automatically set 5°C above set temperature
Shelves Fitted & Max.	1 wire / 2 max	2 wire / 4 max
Shelving Locations	Available 80mm spacing
Heater power	1050W
Voltage	230V 50-60Hz
Energy use at 37°C	0.02kw/h
Energy use at 150°C	0.23kw/h
Dimensions
External (mm)	740w x 460d x 560h	740w x 610d x 600h
Internal (mm)	400w x 270d x 320h	400w x 390d x 360h

Features and Benefits

Gravity convection chamber with exhaust outlet.

Clifton lab oven/incubators feature intuitive easy to use controls with dual temperature display showing actual and set values.

2 Year Warranty

Broad range of accessories available to suit wide range of applications.

Before leaving our factory every product is identified with a unique serial number and undergoes a factory calibration adjusting control to known traceable value. Electrically tested for safety at final inspection and a test certificate enclosed in rear of the instruction book.

The chamber is constructed from high quality stainless steel with high efficiency thermal insulation, contained within an outer steel housing with anti-bacterial paint finish.

Safety Features

• Switching on the controls undergoes an automatic diagnostic check.

• Over temperature alarm is automatically set 5°C above set point.

• Door open – heating is interrupted, after a short delay a door sounder chimes until door is closed, heating resumes.

• Fitted with Class 1 oven temperature thermostat for overall unit protection.

0.02kWh at 37°C
0.23kWh at 150°C
The lower the figure, the less energy used. Information supplied for size and range comparison, guidance only and consumption measured at set point. Please remember that the energy consumption may vary due to factors such as location, ventilation, ambient temperatures and loading.

Featuring PID Digital, LED display showing actual and set temperature, resolution 0.1°C with intuitive controls. Indicators for heating, timer and alarm.

Before ordering please check the room or building access where this unit will be installed and electrical power requirements. Temperature fluctuation measurements are based on temperature readings on shelf in centre of the chamber. Allow a 100mm air gap away from wall at rear. Ensure there is a minimum 300mm air gap from top of the unit to ceiling. Do not place in direct sunlight or near a heat or cold source.

Wire Shelf

Product Code	Oven/Incubator
WS-32	NE1V-32
WS-56	NE1V-56
