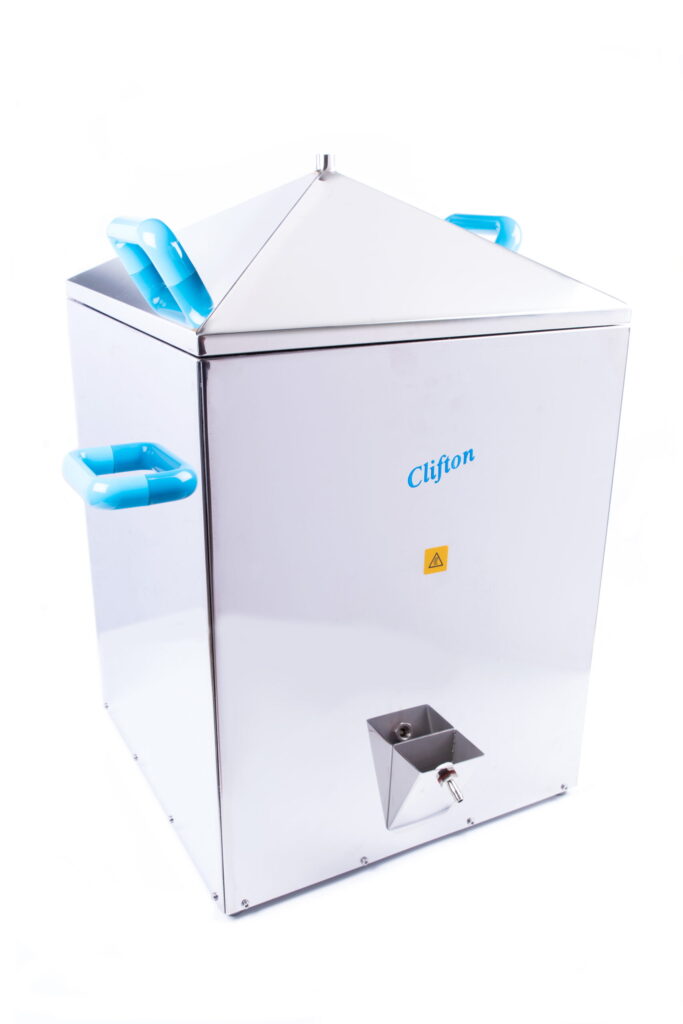

Koch Steam Sterilisers

This Koch steam steriliser electrically heats water and the steam produced, disinfects small unwrapped instruments and other non-porous equipment.

Featuring double skinned walled chamber for insulation purposes with removable shelves for ease of loading. The lid is designed to ensure condensed steam runs back into the chamber. Lifting handles on both the unit and lid which features an 18mm diameter thermometer/thermocouple entry port.

For water level control the Koch steriliser has a filling port and water level indication in an external reservoir. Connect laboratory tubing to filling port and a water supply and adjust the water flow to gently top up the water level to maintain boiling.

This unit is not intended for sterilisation of equipment used in clinical care of patients.

See the range of accessories compatible with the KS range.

3 YEAR WARRANTY

The KS Series comes with a 3 year warranty as standard, we also offer free advice and support.

MADE IN GREAT BRITAIN

The KS Series is made here in Great Britain with the highest quality of materials.

Please see below our full range of sizes for the KS range.

Specifications


Product Code	KS1	KS2	KS3
Chamber Capacity	35 Litres	60 Litres	180 Litres
Temperature Range	Provides constant boiling water producing steam
No. of Perforated Shelves Supplied	2		1
Shelf Size (mm)	288 x 288	390 x 390	450 x 750
Lower Shelf	190mm Working height on lower shelf when top shelf is fitted		480mm Working height when shelf is fitted
Higher Shelf	202mm Working height when higher shelf is fitted (Additional height for taller vessels can be obtained in the centre of the shelf)		N/A
Heater Power (220-240V)	1000W		2000W
Voltage	230V
Dimensions
External (mm)	329w x 329d x 690h	431w x 431d x 690h	500w x 800d x 600h
Internal (mm)	300w x 302d x 500h	400w x 400d x 500h	470w x 770d x 580h

Safety Features

• In operation always connect the filling port in the external trough with laboratory tubing to a water supply, adjust the flow to gently top up the water level to maintain boiling.

• The unit is protected by a thermal cut out which is manually reset.

• Always read the instruction book.

• Visual indication of power on.

This is a traditional bench top steam steriliser which displaces air passively from the chamber by the steam generated within the steriliser. It is known as a ‘Type N’ cycle, being the simplest type and least expensive to purchase, operate and maintain. Suitable for load type ‘non-wrapped solid items.’ Not to be used for hollow devices or wrapped items. Drain and clean chamber and reservoir at the end of each day and leave dry. Replenish with sterile water for irrigation from an unopened container.

Downloads

Detailed document containing the specifications for the KS range of baths.
