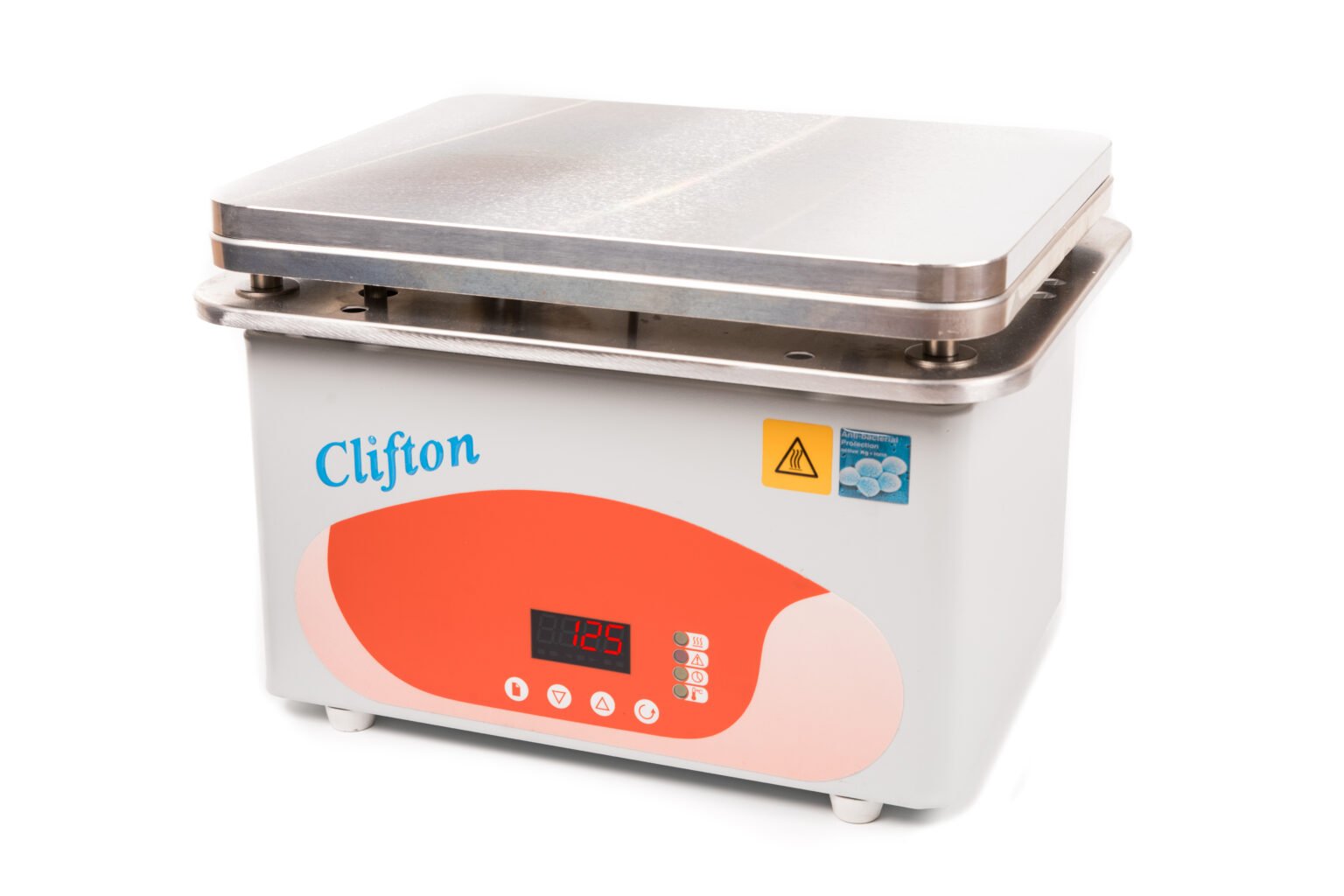

HP1D Digital Hotplates

Image Hotspots with Tooltip (Hover)

Digital hotplate features a precision PID control providing accurate temperature setting and control, for refined hotplate sensitivity. Temperature and time settings are retained in memory, even after power off.

Featuring a hob surface, which is solid aluminium, 12mm thick for excellent thermal properties and uniform heat distribution over its working area. This overlaps the body to ensure that no spillages enter the controls.

See the range of accessories compatible with the range.

3 YEAR WARRANTY

The Series comes with a 3 year warranty as standard, we also offer free advice and support.

MADE IN GREAT BRITAIN

The Series is made here in Great Britain with the highest quality of materials.

Please see below our full range of sizes for the range.

Specifications


Product Code	HP1-1D	HP1-2D/120	HP1-2D	HP1-3D
Temperature Range	Ambient +10° - 350°C
Temperature Control	PID Digital, LED display, resolution 1°C
Temperature Alarm	Over temperature alarm is automatically set 10˚C above set point
Sensitivity	±0.5°C at 60°C
Uniformity	±0.5°C at 60°C
Timer	Variable, 00:01 to 99:59 (hh:mm) Activates at set temperature
Hob Maximum Load	8kg at maximum 300°C Mass evenly spread across hob
Retort Points	Single M10 fixing point, rear hotplate	Double M10 fixing points, rear hotplate
Heater Power (220-240V)	1000W	1600W	2000W	2400W
Voltage	230V	120V	230V
Dimensions
External (mm)	325w x 260d x 200h	477w x 325d x 200h		706w x 325d x 200h
Hob Dimensions (mm)	305w x 240d	457w x 305d		686w x 305d

Features and Benefits

3 Year Warranty

The hob overlaps the base ensuring spillages do not ingress into the controls.

Solid aluminium top plate with excellent thermal properties.

Each hotplate is uniquely identified with its own serial number recorded on our product database, which includes manufacturing inspection data. Electrically tested for safety at final inspection and a test certificate enclosed in rear of the instruction book.

Easily converted into a sand bath with accessory kit for direct immersion of samples.

Sturdy construction – powder coated exterior providing a durable chemical resistant.

Safety Features

• IP rated clear booted on/off power switch.

• Visual warning, indicating the hob is hot.

• The temperature alarm is automatically set 10˚C above set temperature. When in alarm condition the indicator illuminates and actual hotplate temperature is shown, if hotplate is over temperature heating is switched off. Once hob temperature has fallen below the alarm setting the indicator clears and actual hob temperature is shown.

• Fitted with non-slip rubber feet.

• Hob overlaps the body to reduce chance of spillages entering the controls.

Featuring bold LED display of measured temperatures in real-time, increments of 1°C, using precision PID temperature control. Setting for hob temperature only or combination of temperature and time. Timer setting variable in 1-minute increments from 00:01 (hh:mm) to 99:59 (hh:mm) with audible and visual end message on completion. Settings retained in memory. Easy to use touch keypads for setting time and temperature values with indicators for heating, over temperature alarm and timer. The hotplate can be set to run at a set temperature. Timer activates once set temperature is reached. Features auto setting over temperature alarm protecting samples. Every unit undergoes a factory calibration at two temperatures for validation.

Retort Rod

Product Code
8614 : 10mm dia x 500mm aluminium retort rod
8624 : 10mm dia x 500mm stainless steel retort rod
8631 : 12.5mm dia x 600mm mild steel retort rod
8632 : 12.5mm dia x 750mm mild steel retort rod
8633 : 12.5mm dia x 1000mm mild steel retort rod
8634 : 10mm dia x 500mm mild steel retort rod

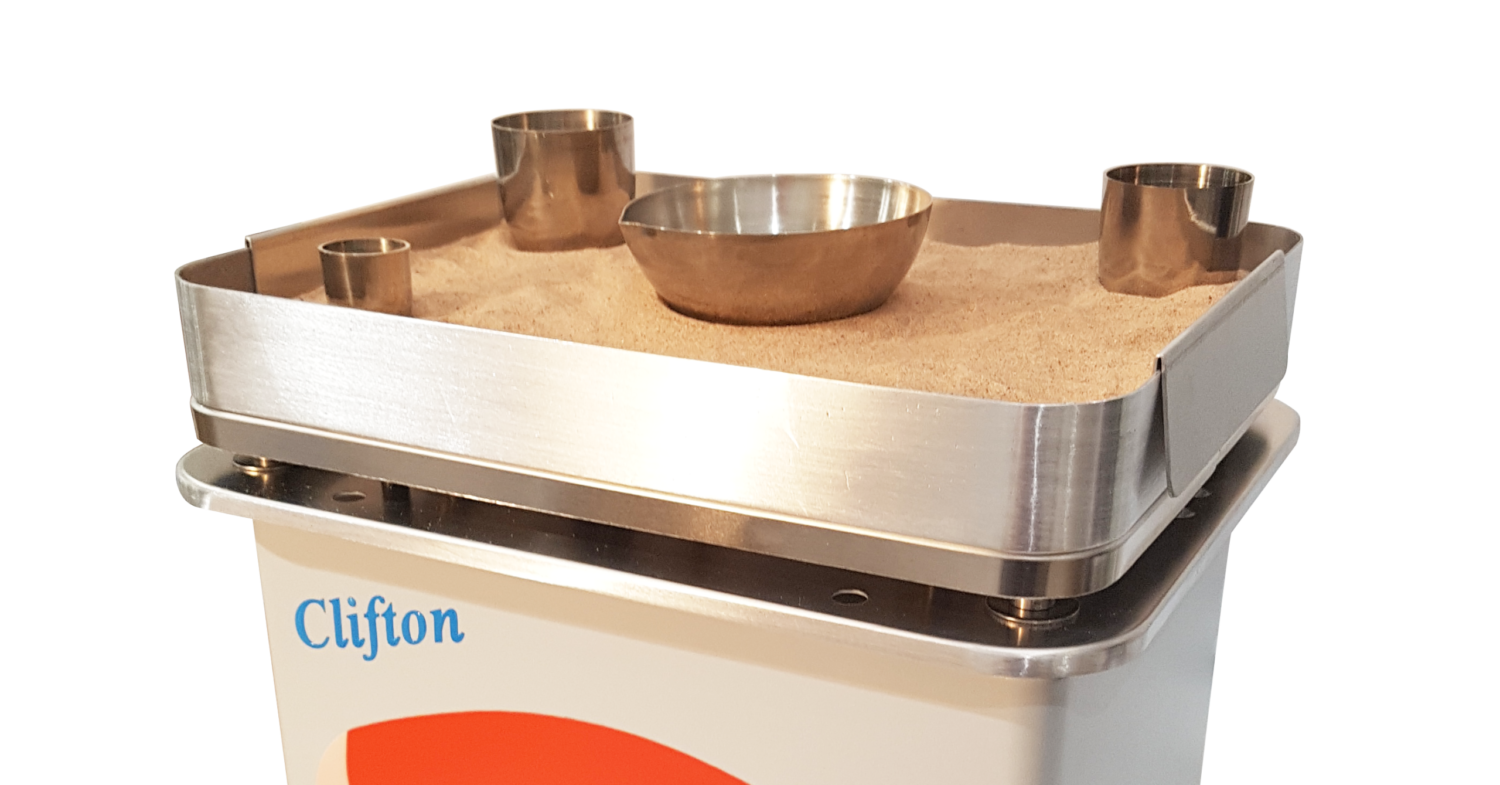

Sand Bath Kit

Product Code	Hotplate
SB1-1	HP1-1D
SB1-2	HP1-2D
SB1-3	HP1-3D
