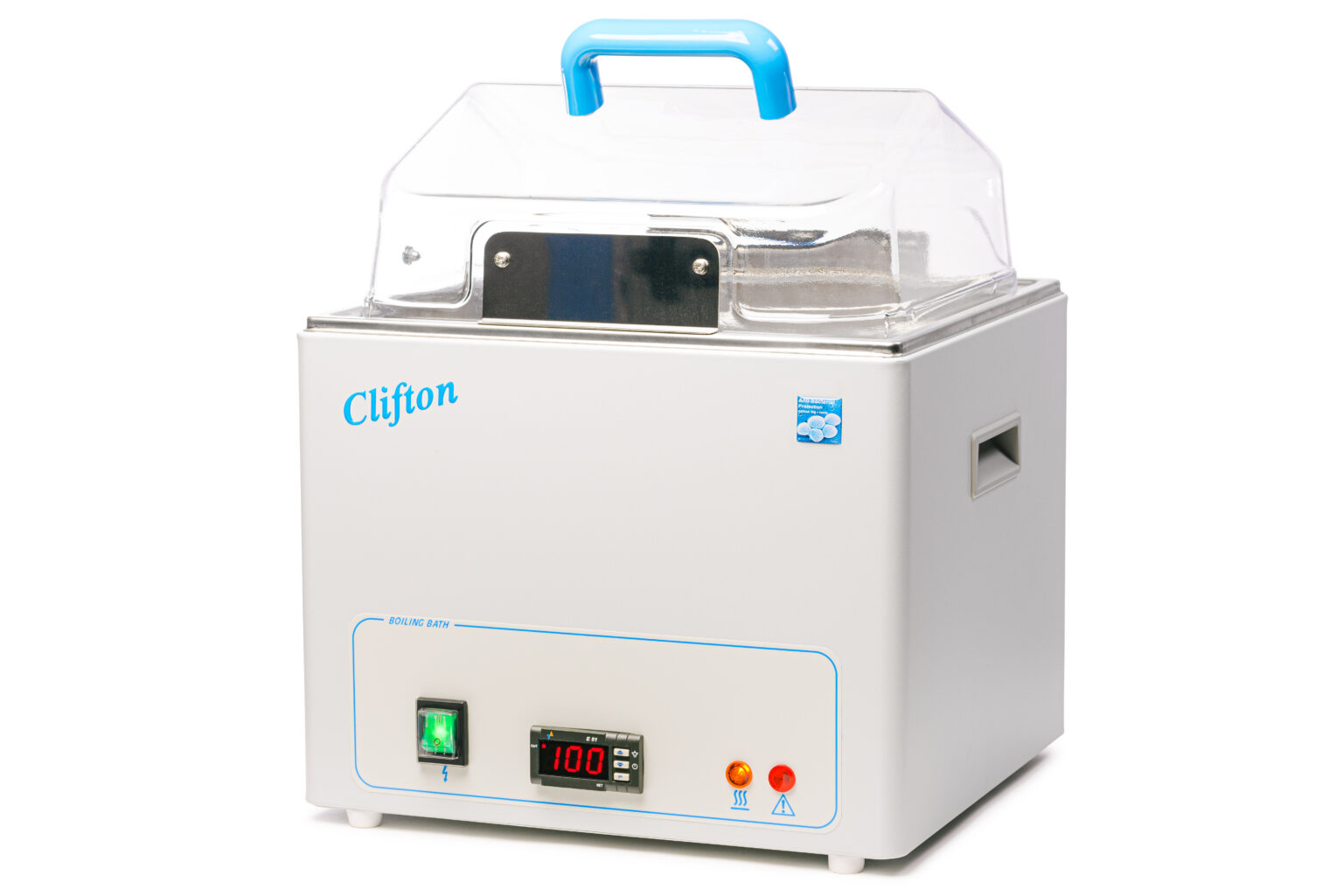

NE1BD Digital Boiling Baths

Temperature Range : Simmer to boiling at 100°C

Image Hotspots with Tooltip (Hover)

This range of boiling baths has been enhanced to include drain tap and clear lift off lid. Designed for applications that require continuous boiling. This bath also has the flexibility where the control can be regulated from a gentle simmer to a vigorous boil.

Comprising of a stainless steel tank housed in a durable paint finished outer case. Painted surfaces feature a tough anti-bacterial finish with good chemical resistance. Complete with a removable stainless steel perforated false base.

The digital bath is fitted with a sheathed immersion element. With the heater directly immersed in water it provides rapid boiling. A standard feature is a constant level device, which maintains a fixed level of liquid thereby eliminating the need to regularly top up the bath.

Sustainability Attributes

Built to last, ensuring longevity

Products are recyclable

Compostable and biodegradable packaging

Lids Reduce Energy Use by 60%

See the range of accessories compatible with the NE1BD range.

2 YEAR WARRANTY

The NE1BD Series comes with a 2 year warranty as standard, we also offer free advice and support.

MADE IN GREAT BRITAIN

The NE1BD Series is made here in Great Britain with the highest quality of materials.

Youtube Videos

Specifications


Product Code	NE1BD-14	NE1BD-18W	NE1BD-28
Chamber Capacity	14 Litres	18 Litres	28 Litres
Temperature Range	Simmer 80°C to boiling at 105°C
Temperature Control	Digital, LED display showing actual or set, resolution 1°C
Heater Power (220-240V)	2500W
Voltage	230V models available 50-60Hz
Water Level Alarm	Features low liquid level float device, heating automatically suspended
Raise and Lower Sterilising Tray	❌	✅	❌
Clear Lift Off Lid Fitted	✅
Drain Tap Fitted	✅
Constant Level Device	✅	❌	✅
Dimensions
External (mm)	362w x 332d x 290h		538w x 332d x 290h
Internal (mm)	325w x 300d x 150h	325w x 300d x 200h	500w x 300d x 200h

Raise and Lower Sterilising Tray

Comes as standard with NE1B-18W and NE1BD-18W

Provides a safe method of lifting sterilised items from boiling water. Excess hot water drains away.

Drain Tap Fitted

Drain tap fitted on baths 8 litres and above.

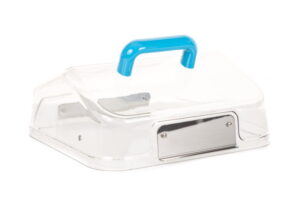

Clear Lift Off Lid Supplied

Clear lid supplied with NE1BD boiling baths.

Features and Benefits

Clifton boiling baths are designed for immersion of flasks, bottles and racks.

The shelf in the stainless steel tank provides a stable support for flasks/bottles/racks that can be removed for cleaning.
The shelf is a low height design maximising the working height.

2 Year Warranty

Broad range of accessories available to suit wide range of applications.

Before leaving our factory every boiling bath is identified with a unique serial number and electrically tested for safety at final inspection. Test certificate enclosed in rear of the instruction book. All boiling baths checked to boil.

Painted surfaces feature “anti-bacterial technology” which inhibits bacterial growth, improving hygiene requirements as demanded by clinical and laboratory environments.

Safety Features

• Bath fitted with non-slip rubber feet.

• Always connect the constant level with laboratory tubing to a water supply, adjust the flow to gently top up the water level, whilst maintaining boiling. Not fitted on NE1B-18W or NE1BD-18W

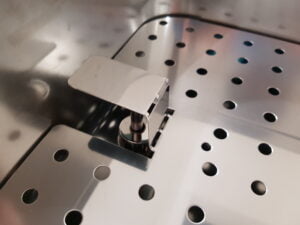

Low Liquid Float Device

• A low liquid float device protects the heaters and a red warning light on the front panel alerts users to refill the bath.

low liquid float device

Digital, LED display showing actual or set, resolution 1°C

The bath can control the amount of boiling from a gentle simmer to a vigorous boil. Above 60°C it is recommended that to achieve optimum performance the bath should be covered with a lid or layer of polypropylene spheres. Covering the bath with a lid also reduces energy consumption and running costs.

The immersed element provides rapid heat energy transfer, resulting in quicker heat up times and a reduction in energy consumption.

Stainless Steel Flat Lid

When fitted, this lid prevents contamination of liquid from airborne particles. Can also be useful when a Clifton water bath is ‘in use’, minimising heat loss, saving energy, and assisting to maintain bath temperature ready for the next application. The lid is fitted with an insulated handle.

Product Code	Bath
LD-14	NE1BD-14
LD-22	NE1BD-28

Stainless Steel Hinged Gable Lid

Clifton stainless steel hinged gable lids reduce evaporation, assist in keeping samples in a water bath free from contamination and save energy. These stainless steel gable lids with a high profile design allow extended
use of the bath, right into the edges of the tank. No drip points and condensate returns back into the bath.

Hinged lids have a number of benefits in use over lift off lids, they simply hinge open, any condensation collects in the lid, samples can be easily removed or placed in water bath. Close the lid and all the collected condensation runs into rear of the water bath.

Product Code	Bath
SL1-14H/SS	NE1BD-14 or NE1BD-18W

Hinged gable lid diagram

Stainless Steel Lift Off Gable Lid

Clifton stainless steel gable lids help reduce evaporation, assist in keeping samples in a water bath free from contamination and save energy. These stainless steel gable lids with a high profile allow extended use of the bath, right into the edges of the tank. No drip points to contaminate samples. The lid design ensures all condensate returns back into the bath. Insulated handles for safe use.

Product Code	Bath
SL1-22SS	NE1BD-28

lift off lid diagram

Clear Hinged Gable Lid

Clifton clear hinged gable lids help reduce evaporation, assist in keeping samples in a water bath free from contamination and save energy. These clear hinged gable lids allow extended use of the bath, right into the edges of the tank. No drip points to contaminate samples. The lid design ensures all condensate returns back into the bath. Insulated handles for safe use.

Product Code	Bath
GL1-14	NE1BD-14 or NE1BD-18W
GL1-22	NE1BD-28

Stainless Steel Test Tube Racks

Laboratory test tube rack, stainless steel 304 spec 18/8 non-magnetic, bright finish. Supplied flat packed ready for assembly. Can be cleaned with detergents, ultrasonics or autoclaved. Durable and stable in use with looped handles for easy retrieval from hot water baths.

• NE1BD-14 = 3 racks
• NE1BD-18W = 3 racks
• NE1BD-28 = 5 racks

Product Code
6870 - (26 holes x 17mm diameter)
6871 - (16 holes x 26mm diameter)
6872 - (36 holes x 13mm diameter)
6873 - (18 holes x 19mm diameter)
6900 - (12 holes x 32mm diameter)

Hose Tail Nozzle

The hose tail nozzle attaches to the tap to allow connection for 12mm i.d rubber hose.

Product Code	Bath
BX0952	NE1BD-14 NE1BD-18W NE1BD-28

Stainless Steel Concentric Ringed Lid

The lid and rings are manufactured from stainless steel. The concentric rings provide varying hole diameters in the lid. In use the lid minimises evaporation and maintains temperature stability of the water bath when tall vessels are being heated at elevated temperatures.

SLR1-4 : 2 x 114mm holes
SLR1-8 : 4 x 83mm holes
SLR2-8 : 2 x 114mm holes
SLR1-14 : 4 x 114mm holes
SLR2-14 : 6 x 83mm holes
SLR1-22 : 6 x 114mm holes

Product Code	Bath
SLR1-14 or SLR2-14	NE1BD-14
SLR1-22	NE1BD-28

By removing concentric rings, the hole sizes can be varied to accommodate different sizes of vessel.

Centre ring – removed, aperture 30mm hole.

Ring 1 – removed, aperture 42mm hole.
Ring 2 – removed, aperture 58mm hole.
Ring 3 – removed, aperture 77mm hole.
Ring 4 – removed, aperture 114mm hole.

Downloads

The water bath brochure contains all the information on our Clifton water baths, including the shaking baths and the ultrasonic baths.

Detailed document containing the specifications for the NE1BD range of baths.
