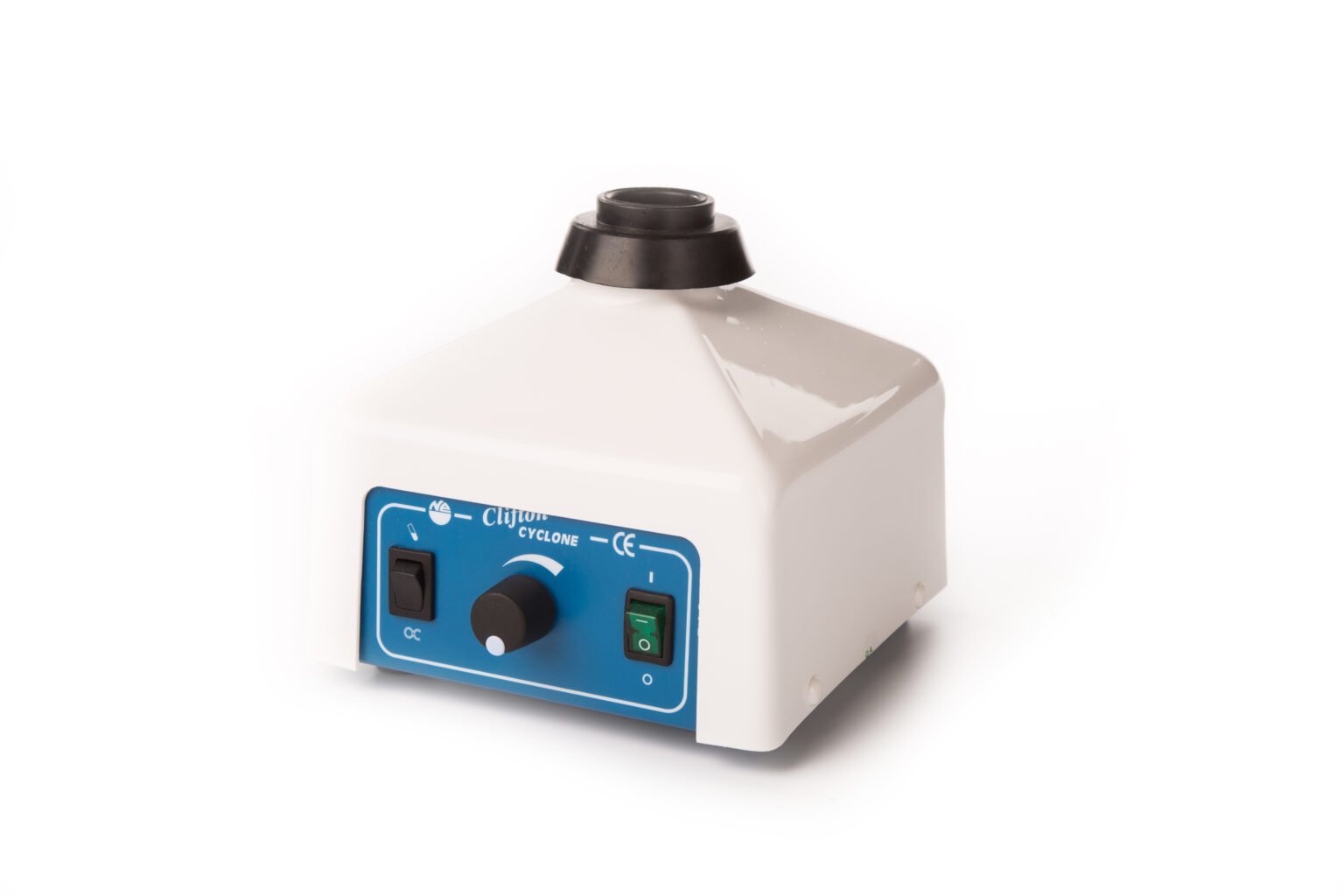

CM-2 Cyclone+ Vortex Mixer

Image Hotspots with Tooltip (Hover)

The cyclone+ is designed for tube, micro plate, flask and micro tube mixing using accessory platforms which can be quickly interchangeable. Variable speed control, with the advantages of controlled mixing over a speed range to a maximum of 2800 rpm for tube mixing.

Where accessory platforms are fitted the unit is designed to operate at lower speeds for gentle mixing reducing damage to cell structures. Two modes of operation set for continuous running or press start operation suitable for use with accessory tube mixing cup.

See the range of accessories compatible with the range.

3 YEAR WARRANTY

The Series comes with a 3 year warranty as standard, we also offer free advice and support.

MADE IN GREAT BRITAIN

The Series is made here in Great Britain with the highest quality of materials.

Please see below our full range of sizes for the range.

Specifications


Product Code	CM-2
Maximum Accessory Platform Speed	200 - 1000 rpm
Mixing Orbit	4 mm
Speed	200 - 2800 rpm
Voltage	230V 50/60Hz
Packed Weight	4 kg
Dimensions
External (mm)	150w x 175d x 150h

Features and Benefits

Variable speed control, with the advantages of controlled mixing over a wide speed range.

Maximum accessory tube mixing speed up to 2800 rpm.

3 Year Warranty

Operates at slow speed for gentle mixing necessary in many applications where damage to cell structure is to be avoided.

Offers variable speed control, with the advantages of controlled mixing over a wide speed range.

Excellent stability is achieved through combination of weight and non-slip feet.

Safety Features

• Motor fitted with one-shot over-temperature/overcurrent safety device.

Applications and accessories

For very slow gentle mixing which is necessary in many applications that need accessory platforms, mixing speeds should not exceed 1000rpm to avoid damaging cell structure.

Platform For 1.5ml Microcentrifuge Tubes

Easy push on and lift off design.

Product Code	Mixer
C3	CM-2

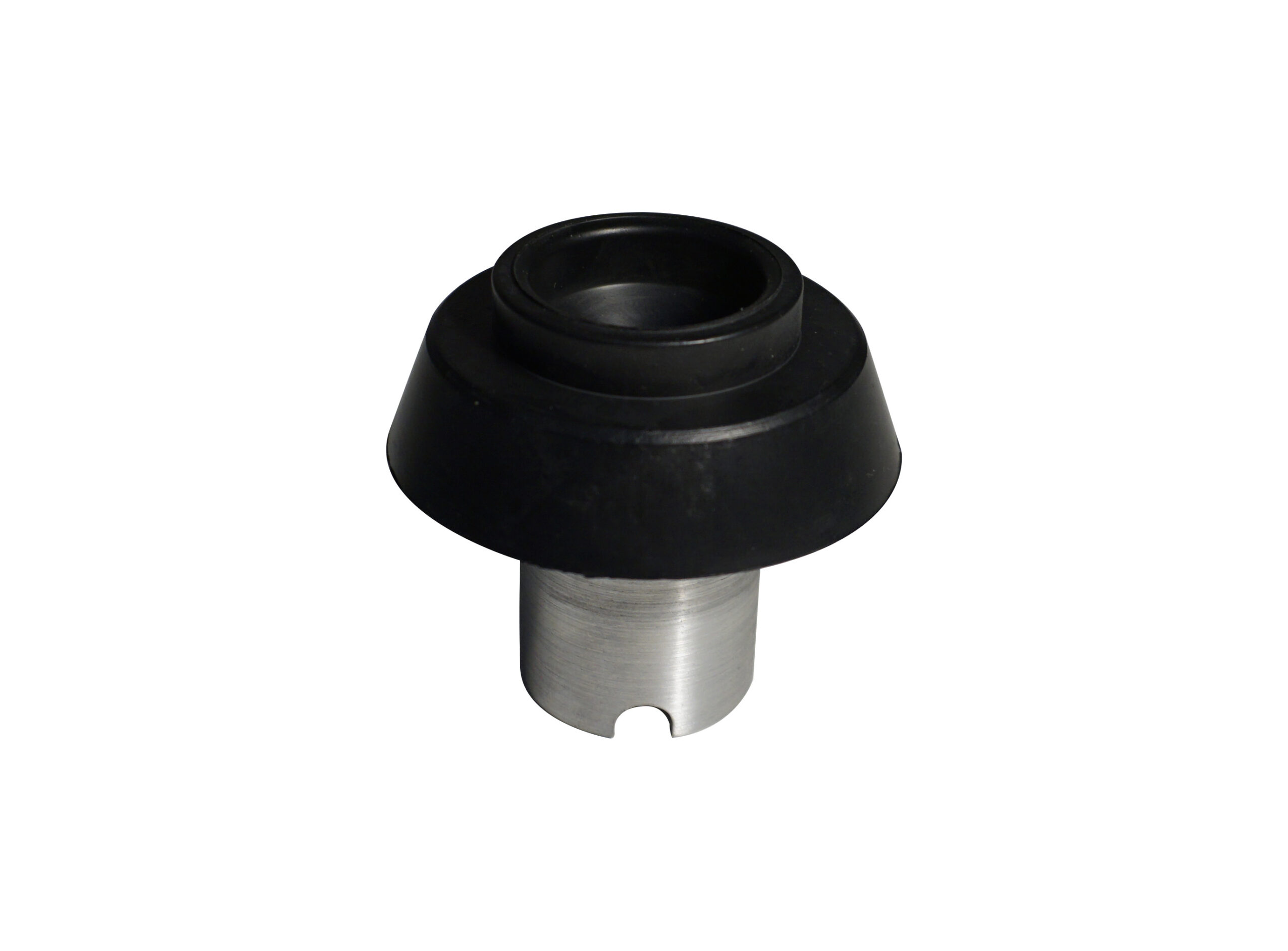

Tube Mixing Cup
