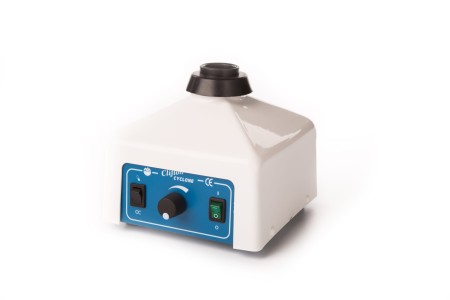

CM-1 Cyclone Vortex Mixer

Image Hotspots with Tooltip (Hover)
Interactive Map
Mixing Capacity
Accepts vessels and tubes upto 25mm diameter.
Speed
200 - 2800 rpm
Mixing Orbit
7 mm
Voltage
230V 50/60Hz

For rapid and efficient mixing the cyclone is far superior to hand shaking. The cyclone creates a vortex in the tube, which gives the highly effective mixing action.

Contamination from stirring rods and stoppers is eliminated and different samples may be subjected to the same degree of mixing, thus improving repeatability of results. Fitted with an automatic press-start operation providing instant action the moment the tube is pressed into the rubber cap. This feature is particularly useful where repetitive mixing is undertaken. Offers variable speed control, with the advantages of controlled mixing over a wide speed range 200 to 2800 rpm on a 7mm orbit. This allows for very slow gentle mixing which is necessary in many applications, particularly where damage to cell structure must be avoided.

3 Year Warranty

3 YEAR WARRANTY

The CM-1 Series comes with a 3 year warranty as standard, we also offer free advice and support.

Made in Great Britain

MADE IN GREAT BRITAIN

The CM-1 Series is made here in Great Britain with the highest quality of materials.

Please see below our full range of sizes for the CM-1 range.

Specifications





Product Code CM-1
Mixing Capacity Accepts vessels and tubes upto 25mm diameter
Mixing Orbit 7 mm
Speed 200 - 2800 rpm
Voltage 230V 50/60Hz
Packed Weight 4 kg
Dimensions
External (mm) 150w x 175d x 150h
Packed (cm) 36 x 19 x 26



Features and Benefits

Can be set for continuous running at the chosen speed or on demand by inserting the tube into the cup.

Can be set for continuous running at the chosen speed or on demand by inserting the tube into the cup.

Skirted rubber cup prevents liquid entering the mixer casing.

Skirted rubber cup prevents liquid entering the mixer casing.

3 Year Warranty

3 Year Warranty

Operates at slow speed for gentle mixing necessary in many applications where damage to cell structure is to be avoided.

Operates at slow speed for gentle mixing necessary in many applications where damage to cell structure is to be avoided.

Variable speed control, with the advantages of controlled mixing over a wide speed range up to a maximum of 2800 rpm.

Variable speed control, with the advantages of controlled mixing over a wide speed range up to a maximum of 2800 rpm.

Excellent stability is achieved through combination of weight and non-slip feet.

Excellent stability is achieved through combination of weight and non-slip feet.


Safety Features

• Motor fitted with one-shot over-temperature/overcurrent safety device.


Notes icon

Notes

1. Accessory stock no. RSA-1/CM retort stand assembly is an ideal option for permanent tube fixing for applications which require long term tube mixing.
2. Proven design in widespread use. 3. Unit is weighted for stability.

Retort Assembly

Ideal for users who require a permanent fixing for test tubes during long term tube mixing. The accessory kit comprises of a retort rod and clamp arm. The retort rod conveniently screws into a fixing point on the Cyclone mixer cover. The clamp arm is a durable clamping device and is rigid enough to hold the tube in the mixing cup, it is flexible enough to allow easy fitting and removal of tubes. Suitable for tubes up to 25mm diameter and up to 150mm long.
1. Easy to assemble and fit.
2. Once fitted reduces hand/arm fatigue and injury from vibration.
3. Economically priced.

retort assembly
Product Code Mixer
RSA-1/CM CM-1
