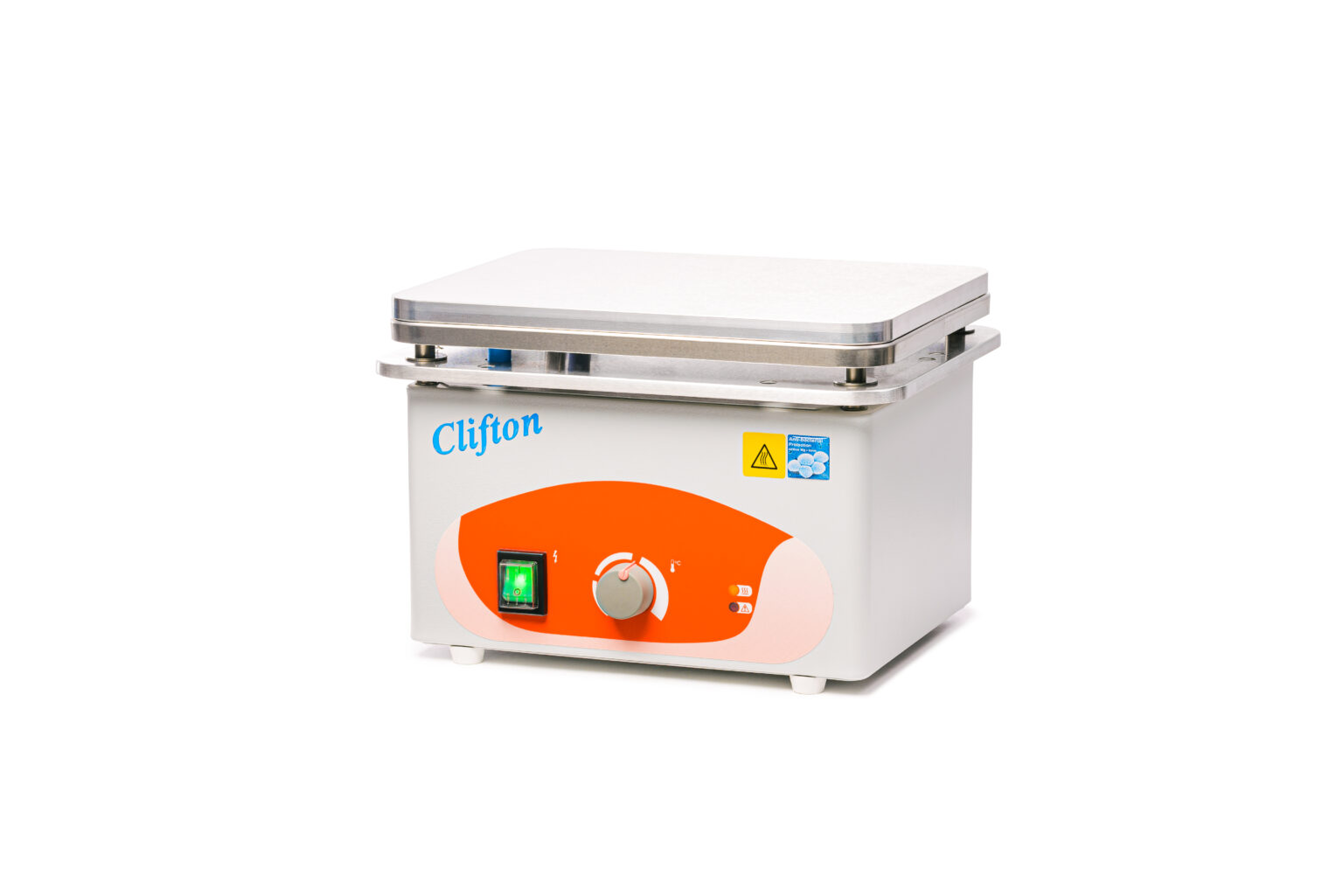

HP1 Analogue Hotplates

Image Hotspots with Tooltip (Hover)
Interactive Map
Temperature Control
Analogue dial pointer.
Ambient +10° - 320°C.
Sensitvity
±10°C at 150°C
Hob Maximum Load
8kg at maximum 300°C.
Quality Build
Sturdy construction – powder coated exterior providing a durable chemical resistant.

Analogue hotplates feature a generous working area, thermostatically controlled, with an illuminated on/off switch, heater and hot warning indicator.

Featuring a hob surface, which is solid aluminium, 12mm thick for excellent thermal properties and uniform heat distribution over its working area. This overlaps the body to ensure that no spillages enter the controls.

Painted surfaces and the control panel have an antibacterial protection which is chemical resistant and is wipe clean. Hob temperature can be adjusted using the control dial.

See the range of accessories compatible with the range.



3 Year Warranty

3 YEAR WARRANTY

The Series comes with a 3 year warranty as standard, we also offer free advice and support.

Made in Great Britain

MADE IN GREAT BRITAIN

The Series is made here in Great Britain with the highest quality of materials.

Please see below our full range of sizes for the range.

Specifications



Analogue hotplate hp1-1
Analogue hotplate hp1-2
Analogue hotplate hp1-3
Product Code HP1-1 HP1-2 HP1-3
Temperature Range Ambient +10° - 320°C
Temperature Control Analogue dial
Sensitivity ±10°C at 150°C
Hob Maximum Load 8kg at maximum 300°C

Mass evenly spread across hob
Retort Points Single M10 fixing point, rear hotplate Double M10 fixing points, rear hotplate
Heater Power (220-240V) 1000W 2000W 2400W
Voltage 230V
Dimensions
External (mm) 325w x 260d x 200h 477w x 325d x 200h 706w x 325d x 200h
Hob Dimensions (mm) 305w x 240d 457w x 305d 686w x 305d


Features and Benefits

3 Year Warranty

3 Year Warranty

The hob overlaps the base ensuring spillages do not ingress into the controls.

The hob overlaps the base ensuring spillages do not ingress into the controls.

Solid aluminium top plate with excellent thermal properties.

Solid aluminium top plate with excellent thermal properties.

Each hotplate is uniquely identified with its own serial number recorded on our product database.

Each hotplate is uniquely identified with its own serial number recorded on our product database, which includes manufacturing inspection data. Electrically tested for safety at final inspection and a test certificate enclosed in rear of the instruction book.

Easily converted into a sand bath with accessory kit for direct immersion of samples.

Easily converted into a sand bath with accessory kit for direct immersion of samples.

Sturdy construction - powder coated exterior providing a durable chemical resistant.

Sturdy construction – powder coated exterior providing a durable chemical resistant.

Safety Features

• IP rated clear booted on/off power switch.

• HOT warning indicator when hob exceeds 60°C.

• Fitted with non-slip rubber feet.

• Hob overlaps the body to reduce chance of spillages entering the controls.

Controls icon

Controls

Easy to use analogue dial pointer for setting temperature. Illuminated on/off switch and heater indication lamp. We verify the performance of every hotplate calibrating its controls temperature at 150°C for consistent temperature control in use.

Retort Rod

Retort rod
Product Code
8614 : 10mm dia x 500mm aluminium retort rod
8624 : 10mm dia x 500mm stainless steel retort rod
8631 : 12.5mm dia x 600mm mild steel retort rod
8632 : 12.5mm dia x 750mm mild steel retort rod
8633 : 12.5mm dia x 1000mm mild steel retort rod
8634 : 10mm dia x 500mm mild steel retort rod

Sand Bath Kit

Sand bath kit
Product Code Hotplate
SB1-1 HP1-1
SB1-2 HP1-2
SB1-3 HP1-3

Downloads



The water bath brochure contains all the information on our Clifton water baths, including the shaking baths and the ultrasonic baths.
