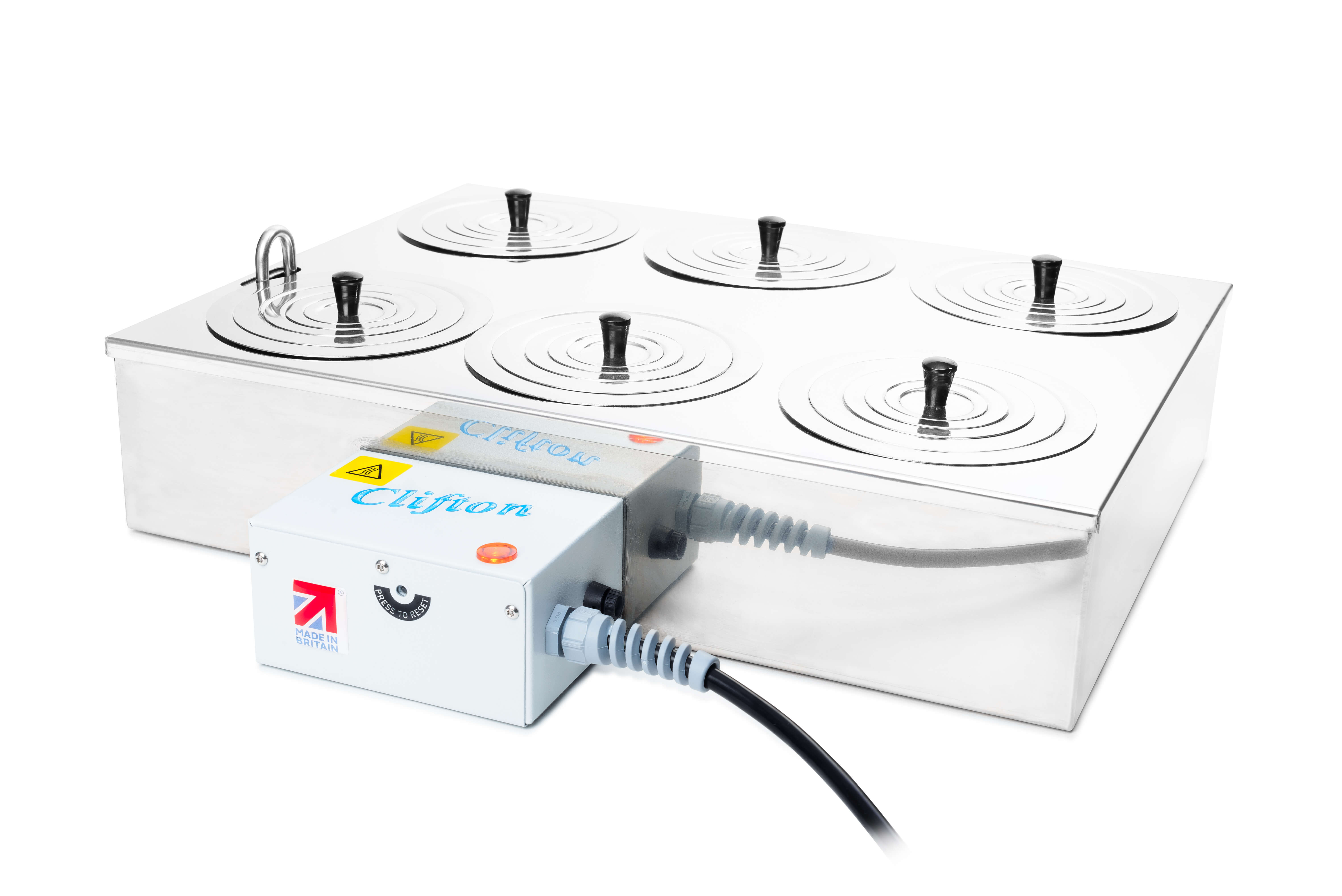

1100 Series Rectangular Boiling Baths

Rectangular boiling baths available in a choice of aluminium or stainless steel are both electrically heated. The multi-place boiling bath regulates from a gentle simmer to a vigorous boil and is fitted with concentric ringed lid, to vary the hole size.

E-Range – The bath provides constant boiling water for gentle heating of samples.

ER-Range – Features a built-in energy regulator, which controls the amount of boiling in a bath from a gentle simmer to a vigorous boil.

The steam produced provides an effective source of heat for samples:

That may be otherwise thermally damaged by a naked flame.
Used for applications to distil/concentrate liquids, melt agar and other solids.
Metallurgical analysis, protein analysis and bacteriological examinations.

See the range of accessories compatible with the range.

2 YEAR WARRANTY

The Series comes with a 2 year warranty as standard, we also offer free advice and support.

MADE IN GREAT BRITAIN

The Series is made here in Great Britain with the highest quality of materials.

Please see below our full range of sizes for the range.

Specifications


Product Code	1101E	1101ER	1102E	1104E	1104ER	1105E	1105ER
Chamber Capacity	4.5 Litres		8.8 Litres			5 Litres
Temperature Range	Boiling at 100°C	Simmer to boiling at 100°C	Boiling at 100°C		Simmer to boiling at 100°C	Boiling at 100°C	Simmer to boiling at 100°C
Temperature Control	Constant boiling no control	Energy regulator which controls the amount of boiling from a gentle simmer to vigorous boil	Constant boiling no control.		Energy regulator which controls the amount of boiling from a gentle simmer to vigorous boil	Constant boiling no control	Energy regulator which controls the amount of boiling from a gentle simmer to vigorous boil
Material	Stainless Steel					Aluminium
Heater Indicator	This indicates ON = heating, off safety cut out has fired
Heater Power (220-240V)	1000W
Lid Fitted	✅
Voltage	230V models 50-60Hz
Dimensions
External (mm)	321w x 219d x 90h		425w x 321d x 90h			400w x 200d x 90h
No. of Holes & Diameter (mm)	6 holes x 80mm diameter		6 holes x 101mm diameter	12 holes x 80mm diameter		6 holes x 80mm diameter

Concentric Rings

By removing concentric rings, the hole sizes can be varied to accommodate different sizes of vessels simultaneously.

Centre ring – Removed, aperture 30mm hole

Ring 1 – Removed, aperture 42mm hole

Ring 2 – Removed, aperture 58mm hole

Ring 3 – Removed, maximum 80mm hole

Ring 4 – Removed, maximum 101mm hole

1101E, 1104E and 1105E have 3 concentric ring sets, and centre ring.

1102E has 4 ring set and centre ring.

Features and Benefits

2 Year Warranty

Painted surfaces feature “anti-bacterial technology” which inhibits bacterial growth, improving hygiene requirements as demanded by clinical and laboratory environments.

Smooth walled tank making it easy to clean and de-scale.

All baths have an integral constant level device to regulate the level of water.

Supplied with concentric ringed lid to vary the diameter holes.

Each bath is uniquely identified with its own serial number recorded on our product database, which includes all of its manufacturing inspection data. Electrically tested for safety at final inspection and a test certificate enclosed in rear of the instruction book.

Safety Features

• The constant level device has a visible water spout to check that water in the boiling bath is maintaining working level. This prevents the chance of the water bath being boiled dry.

• Resettable safety cut out.

ER Range
These models regulate water from gentle simmer to vigorous boil. Always place the boiling bath on a heat proof surface. Heater indication lamp.
E Range
These baths provide constant boiling water for gentle heating of samples by steam. Always place the boiling bath on a heat proof surface. Power on indicator.
